Johnford SV-48H – 2011

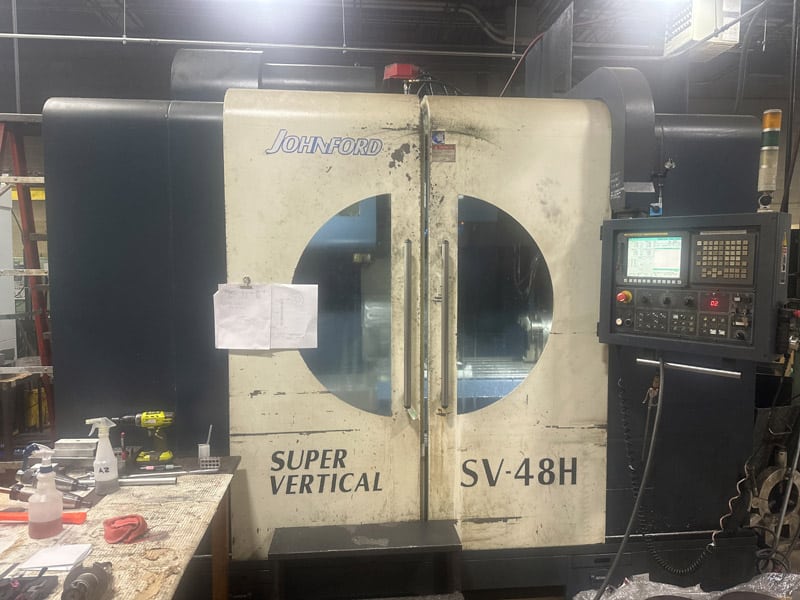

Johnford SV48H CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size: 51.2” x 27.6”
X-Axis Travels: 48.2″
Y-Axis Travel: 28.6″
Z-Axis Travel: 24.6″
Spindle Nose to Table (Min.- Max.): 3.9″ – 28.7″
Rapid Traverse Rates: 945 IPM
Cutting Feed Rates: 630 IPM
Taper Size: CAT-50
Speed Range: 6,000 RPM
Spindle Power: 30 HP
Max Weight on Table: 3300 lbs
ATC Capacity: 24
Max Tool Weight: 33 lbs
Max Tool Dia: 7.8″
Max Tool Length: 11.8″
Tool Changing Time: 2.7 Seconds
Overall Dimensions: 128″ x 128″ x 120″ High
Weight: 22,000 lbs

Equipped With (subject to buyer verification):
CNC Control
Greaed Head
Box Ways
Chip Conveyor
