Kiwa KNH400 – 2001

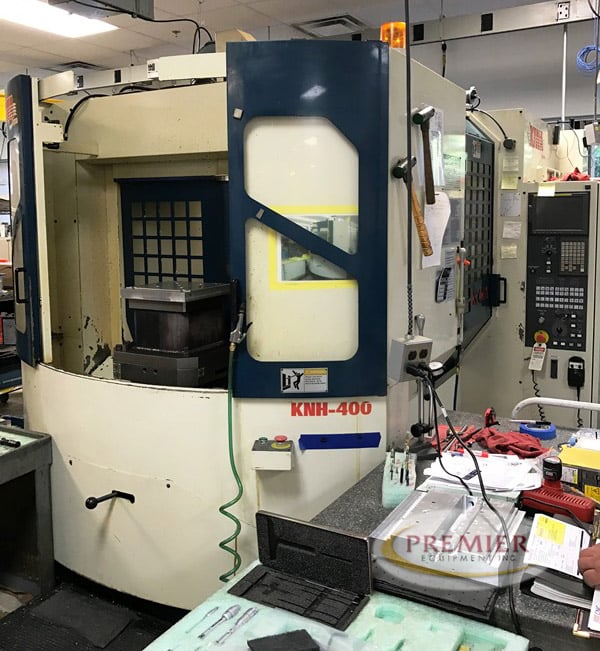

2001 KIWA KNH 400 CNC 4 AXIS HORIZONTAL MACHINING CENTER
Specs
Pallet Size 15.75″ x 15.75″
Number Of Pallets 2
Pallet Weight Capacity 880 Lbs.
Pallet Surface to Spindle Center 5.9″ ~ 25.6″
Pallet Center To Spindle Gage Line 1.2″ ~ 24.8″
X – Axis Travel 23.62″
Y – Axis Travel 23.62″
Z – Axis Travel 19.8″
B – Axis Travel .001 Degree
Rapid Traverse Rates X, Y, Z 1968, 1968, 1968 IPM
Spindle Speed 10,0000 RPM
Spindle Taper 40 CT
Main Motor 25 HP
Automatic Tool Changer 120 ATC
Tool Diameter 3.7″ / 5.9″
Tool Weight 26.4 Lbs.
Equipped with
120ATC COOLANT THRU SPINDLE
EXTENDED MEMORY FANUC 18IMB CNC CONTROL
FANUC 18IMB CONTROL FULL 4TH AXIS
RENISHAW PART PROBE RENISHAW PART PROBE
RIGID TAPPING TOOL LENGTH MEASURMENT
