KURAKI KHM125 – 2001

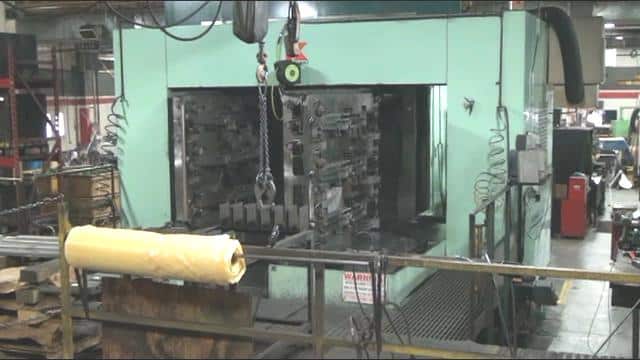

2001 KURAKI KHM 125 CNC 4 AXIS HORIZONTAL MACHINING CENTER
Specs
Pallet Size 49.21″ x 49.21″
Number Of Pallets 2
Pallet Weight Capacity 6600 LBS.
Pallet Surface to Spindle Center 1.97″ ~ 51.18″
Pallet Center To Spindle Gage Line 16.73″ ~ 56.10″
X – Axis Travel 78.74″
Y – Axis Travel 59.06″
Z – Axis Travel 39.37″
B – Axis Travel .001 DEGREE
Rapid Traverse Rates X, Y, Z 787, 787, 787 IPM
Cutting Feed Rate .04 ~ 314.96″
Spindle Speed 12,000 RPM
Spindle Taper 50 TAPER
Number Of Ranges 3 RANGES
Main Motor 40 HP
Automatic Tool Changer 60 ATC
Tool Diameter 4.92″, 9.06″
Tool Length 17.72″
Tool Weight 55 LBS.
Machine Weight 66,000 LBS
Equipped with
CHIP CONVEYOR EXTENDED MEMORY
FANUC 16MC CNC CONTROL FULL ENCLOSURE
INDUSCTOSYN SCALE FEEDBACK RENISHAW PROBING SOFTWARE
THRU SPINDLE COOLANT
