Leadwell LBV-3219 – 2008

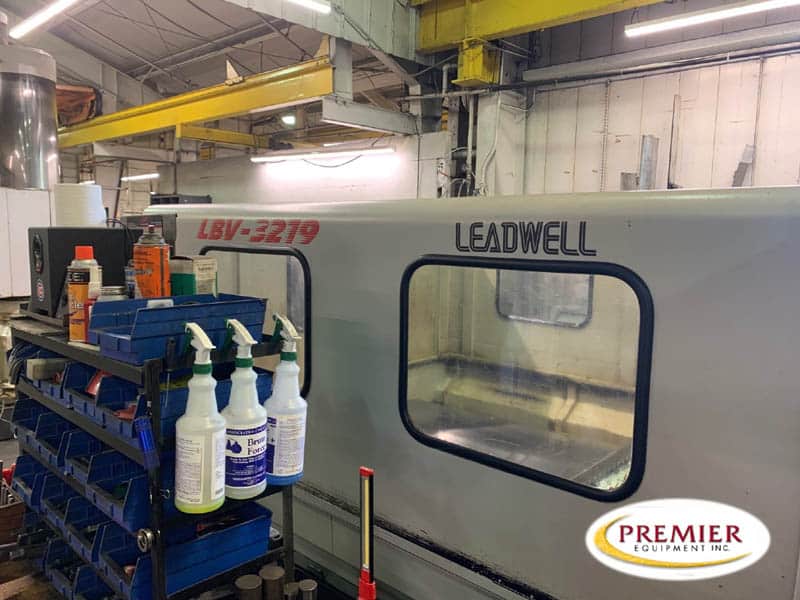

Leadwell LBV3219 CNC Vertical Machining Center
Specifications – subject to buyer verification:
Table Size 118″ x 66.92″
Max Table Load Capacity 22,000 lb
Product Distance From Table Top Spindle Nose 8.6″ – 38″
X Axis Travel 125.98″
Y Axis Travel 70.85″
Z Axis Travel 29.5″
Main Spindle RPM 6000 RPM
Rapid Traverse Rate X 472 IPM
Rapid Traverse Rate Y 472IPM
Rapid Traverse Rate Z 393 IPM
Number of Tool Stations 40 ATC
Max Tool Dia Adjacent Pocket Empty 7.87″
Maximum Tool Length 13.77″
Maximum Tool Weight 44 lb
Spindle Taper CAT 50
Main Spindle HP25/20 HP
Equipped With – subject to buyer verification:
Fanuc 21iMB CNC Control
Scales on XYZ
Thru Spindle Coolant (290PSI)
Chip Conveyor
Renishaw RMP 60 Probe
Renishaw OTS ATLM
Oil Chiller for Spindle
