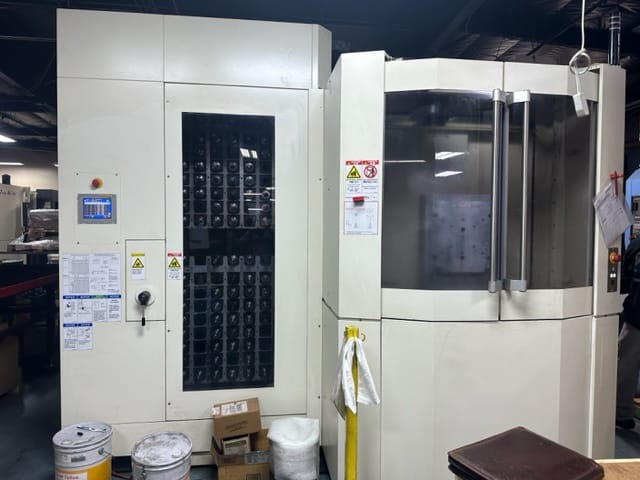

Makino A51NX Horizontal Machining Centers
Travel:X-Axis22.0″
Y-Axis 22.0″
Z-Axis 25.2″
Spindle Speed 14,000 RPM
Spindle Taper BT40
ATC Stations133 ATC
Spindle Motor 50 HP
Number of Pallets 2
Pallet Load Capacity 880 lbs.
Rapid Traverse Rates 2,362 IPM
Max Feedrate 1968 IPM
Machine Dimensions (L x W x H) 135″ x 98″ x 106″
Machine Weight 17,200 lbs.
EQUIPPED WITH:
PRO 6 (FANUC) CNC CONTROL
Full 4th Axis
Hi Pressure Coolant Thru Spindle (220 psi)
Laser broken tool measuring
Renishaw OPH Probing
Chip Conveyor
Hardware for BT or CT 40
