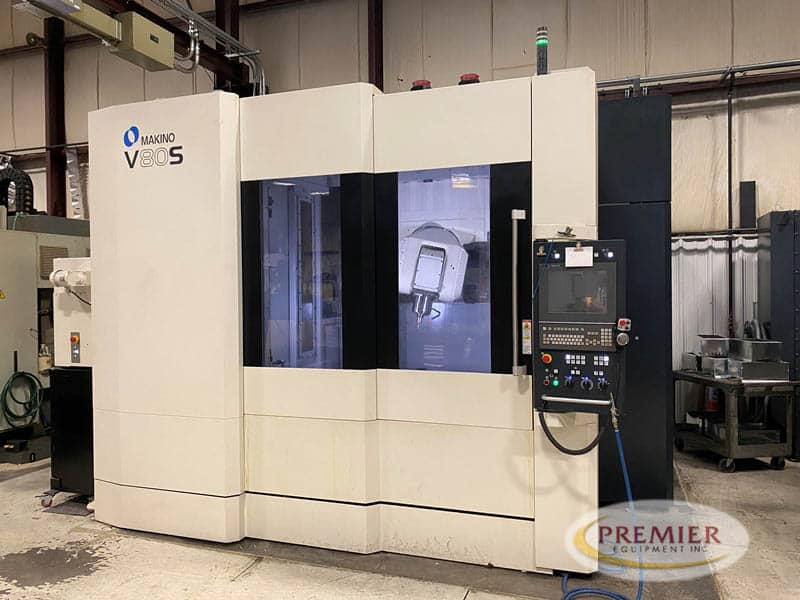

Makino V80S (5-Axis) (2018)

MAKINO V80S for sale
Specs
Number Of Tables / Pallets 1
Table Size 51.81″ x 39.37″
Weight On Table 5512 Lbs.
Maximum Workpiece Size 51.1″ x 39.3″
Main Spindle Speeds 20000 RPM
Main Spindle Taper HSK A63
Main Spindle Horse Power 30 HP
X – Axis Travel 51.2″
Y – Axis Travel 39.3″
Z – Axis Travel 23.6″
A – Axis Travel – 30 Degree to + 30 Degree
C – Axis Travel Head Rotation – 60 Degree + 60 Degree
Rapid Traverse X, Y, Z 2283 IPM
Cutting Feed Rate 1575 IPM
Automatic Tool Changer 40 ATC
Tool Diameter 2.76″ / 3.93″
Tool Length 11.8″
Tool Weight 17.6 Lbs.
Machine Weight 45,320 LBS.
Equipped with
20,000 RPM HSK 63A SPINDLE 3-DIMENSIONAL CUTTER COMPENSATION
400 PAIRS TOOL OFFSETS 48 FIXTURE OFFSETS
AIR DRYER BLUM LASER MEASUREMENT
CHIP CONVEYOR COLLISION SAFEGUARD
COOLANT THRU SPINDLE ECO MODE FUNCTIONS
HIGH SPEED SMOOTH TCP PORTABLE HAND HELD MPG
PROFESSIONAL 6 CNC CONTROL RENISHAW PART PROBE
RIGID TAPPING SCALE FEEDBACK
SPINDLE CHILLER SUPER GI 5 CONTROL
TEMPERATURE CONTROLED COOLANT SYSTEM TILTED WORK PLANE INDEXING COMMAND
WASHING COOLANT IN MACHINING AREA
