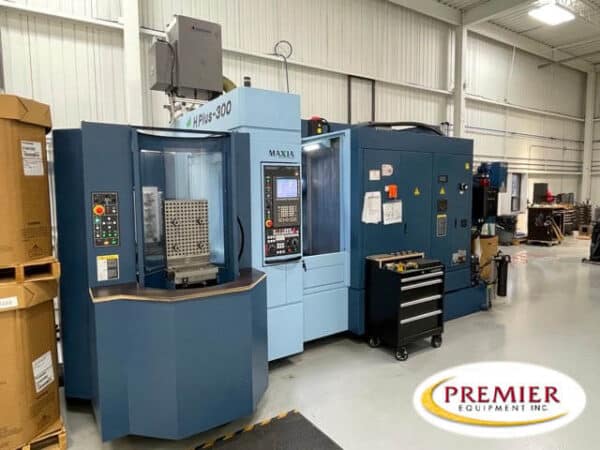

Matsuura HPlus300 PC5 CNC Horizontal Machining Center
Specifications (subject to buyer verification):
PALLET SIZE 11.81″ X 11.81″
NUMBER OF PALLETS 5
TABLE LOAD CAPACITY 550 LBS.
X- AXIS TRAVEL 19.68″
Y- AXIS TRAVEL 19.68″
Z- AXIS TRAVEL 19.68″
PALLET CENTER TO SPINDLE FACE 3.15″ – 22.83″
PALLET SURFACE TO SPINDLE CENTER 4.72″ – 24.41″
B- AXIS INDEXING .0001 CONTOURING
SPINDLE SPEEDS 15,000 RPM
SPINDLE TAPER CT 40
RAPID TRAVERSE RATES X,Y,Z IPM 1969
CUTTING FEED RATE IPM 1969
AUTOMATIC TOOL CHANGER CAPACITY 120
MACHINE WEIGHT 22,000 LBS.
Equipped With (subject to buyer verification):
Mat G-Tech 30i Control
Matsuura Hi-Tech 15,000 RPM Spindle (CAT40)
Full 4th Axis Rotary Table with Scale .001 Degree
5 Position Automatic Pallet Changer
120 Position Auto Tool Changer (240 Position base)
Rotary Wiper/Air Supply System
Tube Micro-Fine II Chip Evacuation System (Scraper Type Chip Converyo)
In-Process Measurement, Renishaw OMP-60
Renishaw NC-4 Laser for Tool Measurement
Coolant Thru Spindle @ 300 PSI
Overhead FlushingSystem
Aeroex ROX-400 Oil/mist Collector
G54.2 – Dynamic Fixture Offset
iZ-2/150NF with 1.000 block look ahead
Nano smoothing Funciton with jerk control
Optimal Torque accel/decel function
Orbital turning Function
