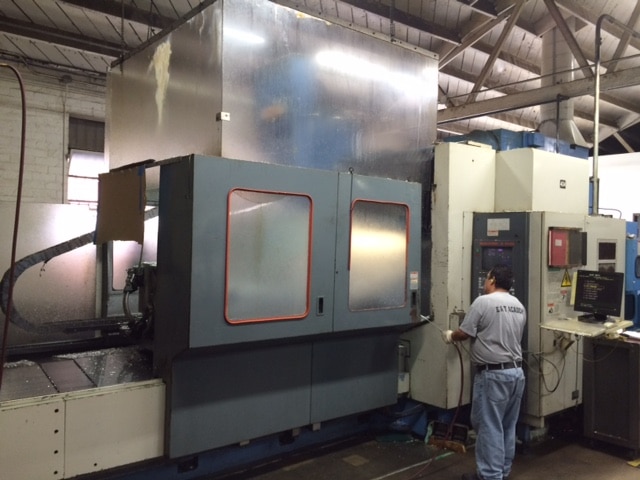

Mazak AJV-60/120 with Rotary Table – 1998

1998 MAZAK AJV-60/120 CNC 4TH AXIS VERTICAL MACHINING CENTER
Specs
Number Of Tables 1
Table Size 49.21″ X 118.11″
Table Load Capacity 8800 LBS.
Distance Between Columns 59.05
Spindle Nose To Table 7.87″ ~ 27.87″
X – Axis Travel 125.98″
Y – Axis Travel 55.12″
Z – Axis Travel 20″
Rapid Traverse X, Y, Z 945, 945, 708 IPM
Cutting Feed Rate .04 ~ 394.8 IPM
Spindle Speed 10,000 RPM
Spindle Taper 50
Main Motor 50 HP
Automatic Tool Changer 60 ATC
Tool Diameter 4.92″, 7.48″
Tool Length 11.81″
Tool Weight 33 LBS
Machine Weight 55,125 LBS.
Equipped with
20” MODEL RNCNC 501 TSUDAKOMA ROTARY TABLE 9.8” RAISED COLUMN
ABSOLUTE ENCODER SYS N/A W/ S/F-3AX ADDITIONAL EIA/ISO FUNCTIONS
BARNES CHIP & FILTRATION SYSTEM COOLANT THRU SPINDLE 213 PSI
CORNER C/R FULL ENCLOSURE
INDEX PIN & CONFIRMATION SWITCH PREP INVERSE TIME
MAZATROL M-PLUS 4TH AXIS CONVERSATIONAL CONTROL MEMORY 2000 METERS
MONITORING SYSTEM B NIAGARA COOLANT SYSTEM
SEQUENCE NUMBER COMPARISON STOP SHG
SPINDLE CHILLER SYNC. TAP
TSUDAKOMA RJM501 SUPPORT TABLE
