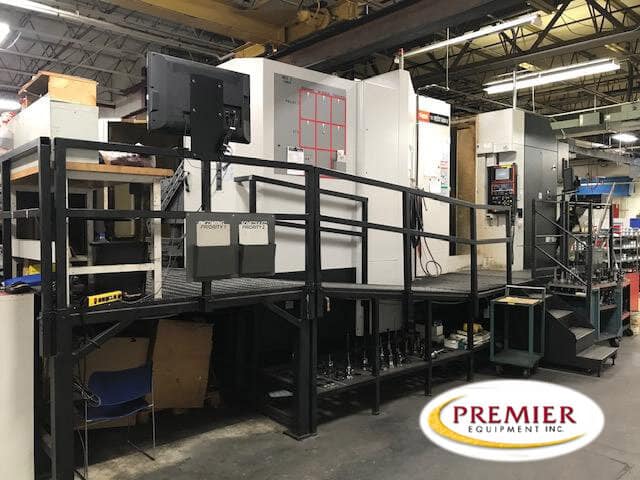

Mazak HCN-10800-II – 2010

Mazak HCN10800-II / Nexus 10800-II
CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size 39.37″ x 39.37″
X-Axis 66.9″
Y-Axis 55.1″
Z-Axis 60″
Distance from Pallet
Center to Spindle Nose 5.9″ – 65.94″
Distance from Pallet
Top to Spindle Center 3.93″ – 59″
Maximum Table Load 6,600 lbs.
Maximum Dimension 80.7″ x 62.99”
Spindle Nose CAT#50
Spindle Speed 8,000 RPM
Spindle Nose CAT#50
No. of Tool Stations 80 ATC
Spindle Motor 50 / 40 HP
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control
HI-TORQUE SPINDLE 1218NM/ 8000RPM AC50HP
Full 4th Axis
Mazak Superflow T8-1000 High Pressure Thru Spindle Coolant
80 ATC
