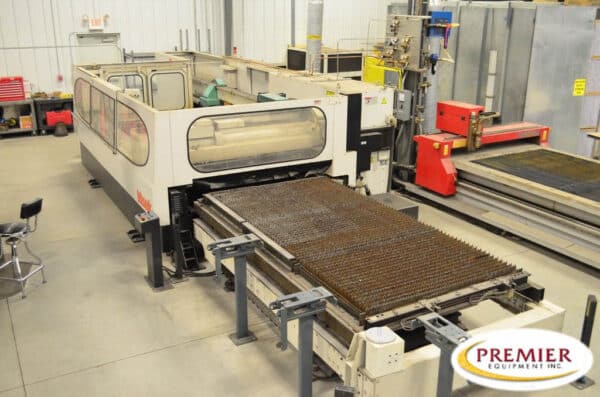

Mazak Hyper Gear 510 with Pallet Shuttle 4000 Watt CNC Flying Optic CNC Laser
CAPACITY:
MAXIMUM POWER 4000 WATTS
MAXIMUM SHEET SIZE 60.04″ X 120.08″
X-AXIS STROKE 120.87″
Y-AXIS STROKE 60.83″
Z-AXIS STROKE 3.94″
MAX. CUTTING THICKNESS (MILD STEEL) 0.984″
MAX. CUTTING THICKNESS (STAINLESS) 0.59″
MAX. CUTTING THICKNESS (ALUMINUM) 0.47″
MAXIMUM LOAD CAPACITY 2,050 LBS.
POSITIONING ACCURACY 0.0004″
REPEATABILITY 0.0002″
RAPID TRAVERSE 4,724 IPM
APPROXIMATE FLOOR SPACE 441″ X 135″
APPROXIMATE WEIGHT 32,500 LBS.
EQUIPPED WITH:
MAZATROL PREVIEW GRAPHIC CNC CONTROL
AUTOMATIC PALLET CHANGER
AUTO POWER OFF
THREE TRY RESTART
LINEAR DRIVES
AUTOMATIC TORCH
AUTOMATIC NOZZLE
AUTO FOCUS
SIDE AIR BLOW
NOZZLE KIT
HOURS: 19,133
