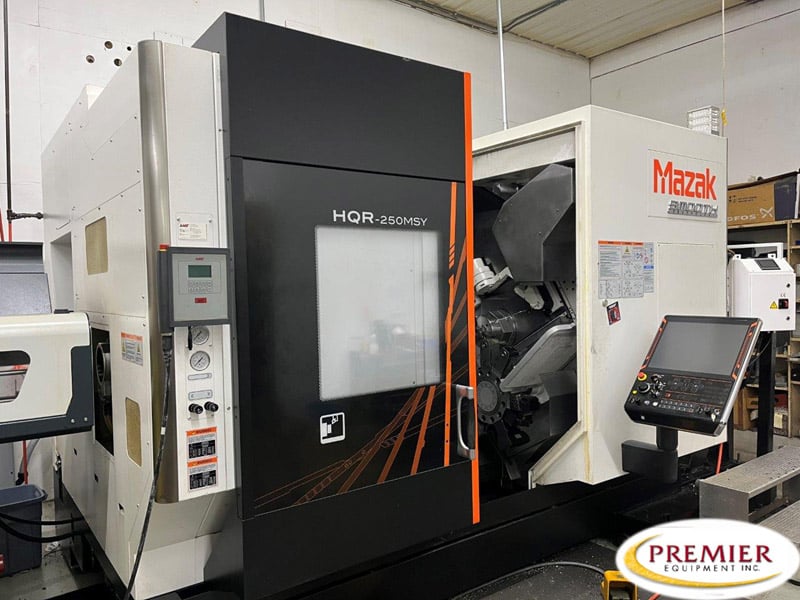

Mazak Hyper Quadrex 250MSY Multi-Axis CNC Turning Center / HQ250MSY
Specifications (subject to buyer verification):
Maximum Swing Over Upper Turret……………. 14.57″
Maximum Swing Over Lower Turret……………. 12.6″
Maximum Machining Diameter: Chucking……… 13.54″(Upper)
Maximum Machining Diameter: Chucking……… 8.7″(Lower)
Maximum Machining Length……………………….. 33.9″
Maximum Distance Between Chuck Jaws……… 33.86″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………………………. A2-8
Spindle Bore……………………………………….. 3.58″
Maximum Bar Work……………………………….. 3.15”
Spindle Speed……………………………………… 35-4,000 RPM
Spindle Index (Programmable)…………………… 0.0001 Deg. 3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)……………. 30/35 HP (AC)
UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret……………………………………… 12 pos. Drum VDI
Rotary Tool Spindle Speed……………………….. 35-6,000 RPM
Rotary Tool Spindle Horsepower/(10 min)…….. 7.5 HP
Equipped With (subject to buyer verification):
Smooth G CNC Control
Hi-Press Coolant 213psi With Temperature Control
Workpiece Unloader & Conveyor 3.15″Dia.X 10″L X 11.02 Lb.Max
LNS Turbo MH-250 Side Disposal Chip Conveyor
Overload Detector Hd1&Hd2
Smooth Engraving Function
LNS Quick Load Servo 80-S2 Barfeed
