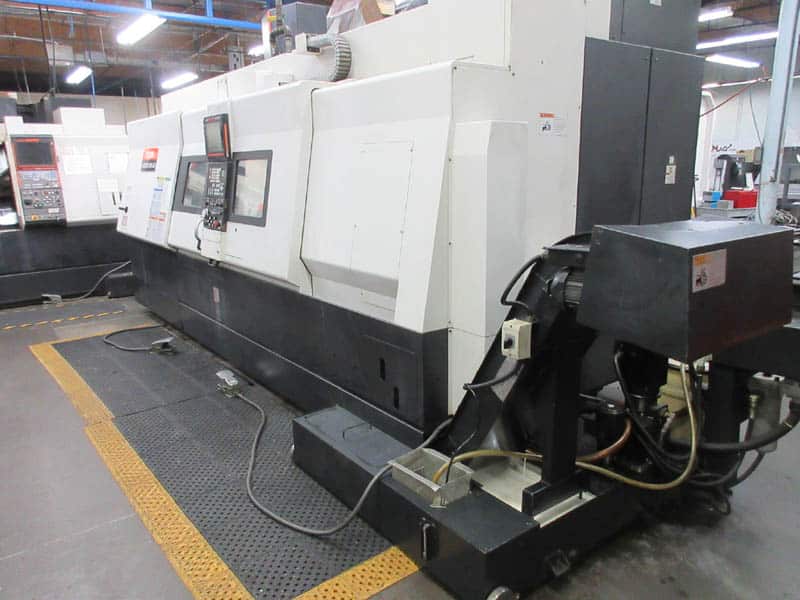

MAZAK Integrex 300-3SY
New in: 2005
Control Type Mazatrol 640 MT Pro
Chuck Size 10” quick change Jaws. A2-8 nose
Swing 33.5″
Turning Diameter 30″
Center Distance 60″
Bar Capacity 3..06
X-Axis Travel 24.8″
Y Axis Travel 9.06″
Z-Axis Travel 62.41″
B Axis Head Tilt 225°
C Axis Index 0.001°
W Axis Travel 41.34″
Rapid Traverse (X/Y/Z) 1,496/1,024/1,496 ipm
Spindle Nose A2-8
Main Motor 30 HP
Sub Spindle Yes –
Sub Spindle Speed 4,000 RPM
Sub Spindle Motor (HP) 25/20 HP
Live Tooling yes
Live Tooling Speed 12,000 RPM – Milling Spindle CAPTO- C-6
Live Tooling Motor 25 HP
Tailstock no
Y Axis yes
ATC Capacity 80 tool stations
Dimensions 229″ x 96″ x 110″
Weight 28,700 pounds
Max Swing Over the Slant Bed……… 24.01″
Max Swing Over the Carriage……….. 17.71″
Cross Travel (X-Axis)…………………… 22.83″
Maximum Machininable Length…….. 60
Longitudinal Travel (Z-Axis)………….. 62
Turret Slide (Y-Axis)…………………….. 9.06″(+/-4.53)
Universal Head Swivel (B-Axis)……… 225 Degree
Tool Changer Capacity…………………. 80 Total
Rotary Tool Spindle………………………. 20 HP
Rotary Tool Spindle Speed Range….. 12,000 RPM
Hole Thru Spindle…………………………. 3.46″
Bar Capacity………………………………… 3.03″
Main Spindle Horsepower………………. 30 HP
Main Spindle Speed Range……………. 35-3500 RPM
Sub-Spindle Horsepower……………….. 30 HP
Sub-Spindle Speed Range……………… 35-3500 RPM
Approximate Machine Dimensions…… 229″ x 96″
Approximate Machine Height………….. 106″
Approximate Machine Weight………….. 28,700 Lbs
