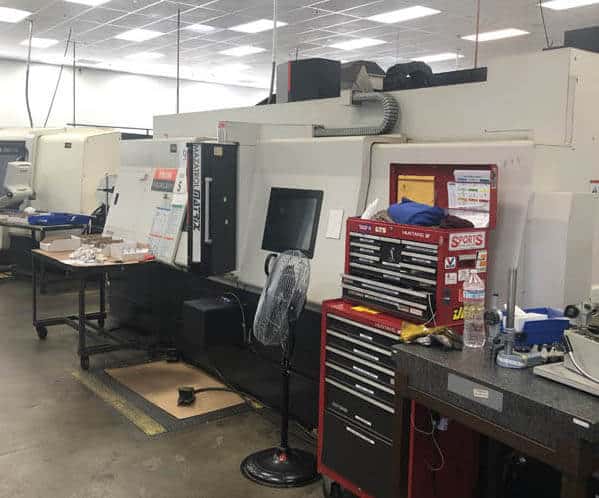

Mazak Integrex 300-4S – 2008

MAZAK INTEGREX 3004s/1500 CNC MULTI-TASKING TURNING CENTER
Specs
Swing Over Bed 30″
Turning Diameter 30″
Turning Length 60″
Distance Between Spindles 60.24″
Chuck Size 1, 2 10″, 10″
Spindle Nose 1, 2 A2 – 8, A2 – 8
Spindle Bore Diameter 1, 2 3.46″
Bar Capacity 1, 2 3″
Spindle Speeds 1, 2 4000, 4000 RPM
Spindle Horsepower 1, 2 40, 35 HP
B – Axis Head Indexing SIMULATNEOUS 5 AXIS
B – Axis Milling Spindle Speed 12,000 RPM
B – Axis Milling Spindle Taper C6 CAPTO
B – Axis Milling Spindle Horse Power 25 HP
ATC For Milling Spindle 40 ATC
Tool Diameter 3.54″, 4.92″
Tool Length 15.75″
Tool Weight 22 LBS.
X – Axis Travel X1, X2, X3 24.8″
Z – Axis Travel Z1, Z2, Z3 62.41″
Y – Axis Travel Y1, Y2, Y3 9.06″
C – Axis Indexing 1, 2 .0001, .001
W – Axis Travel Sub Spindle 60.24″
Rapid Traverse Rates X1, X2, X3 1496 IPM
Rapid Traverse Rates Z1, Z2, Z3 1496 IPM
Rapid Traverse Rates Y1, Y2, Y3 1024 IPM
Machine Weight 28,660 LBS
Equipped with
15″ COLOR LCD 3D COORDINATE ROTATION
AUTO PECKING CHIP CONVEYOR (1500U)
COOLANT THRU MILLING HEAD EIA HELICAL TAP
EIA PATTERN CYCLE EIA/ISO INPUT FUNCTION
FLASH TOOL G00 SLOPE CONSTANT
IC MEMORY CARD INTERFACE INCH/METRIC
INVERSE TIME LAN PORT
MAZATROL MATRIX CNC CONTROL POLAR COORDINATE INPUT
ROT-AXIS SHAP COMP. SHAPE COMP.
SIMULTANEOUS 5 AXIS SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
SUB C-AXIS CONTROL SYNC TAP ON MILL HEAD G54.1
THREAD TOOL CENTER POINT CONTROL
TOOL RADIUS COMP 5 AXIS TOOL RADIUS COMP 5 AXIS / 3D COORD. CONVERSION / USER MACRO 600 PAIRS
USB INTERFACE
