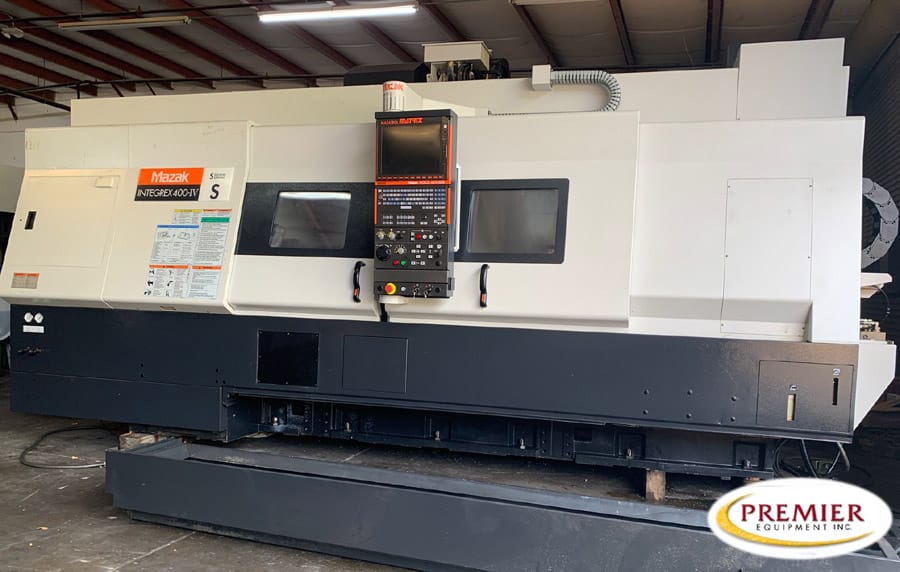

Mazak Integrex 4004S CNC Turning / Milling Center with Sub-Spindle & Y-Axis / Integrex 400IVS
Specifications (subject to buyer verification):
Maximum Swing……………………… 30″
NOTE: Tool eye body may limit max. swing.
Maximum Swing using Y-axis………….. 26″-30″
Maximum Swing over Cross Slide………. 30″
Maximum Cutting Diameter: Chucking…… 30″
Maximum Cutting Length 60″………….. 60″
Max. Distance Between Chuck Jaw Faces 60″ 60.2″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-8
Spindle Bore………………………. 4.4″
Maximum Bar Work…. ………………. 4.0″ Dia.
Spindle Speed……………………… 3,300 RPM
(Limited to 3000 RPM by standard chuck package)
Spindle Index (Programmable)………… 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.)….. 40/40 HP (AC)
Spindle Torque (25% ED)…………….. 1033 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose………………………. A2-8
Spindle Bore………………………. 3.46″
Spindle Speed……………………… 4,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg. C-Axis Option
Spindle Horsepower (Cont./30 Min.)…… 30/35 HP (AC)
Spindle Torque…………………….. 368.8 ft-lbs.
TURRET AND TOOLING SPECIFICATIONS:
Magazine Capacity………………….. 40 Tools
Z-Axis 60″………………………… 62.41″
Second Headstock W-Axis 60″…………. 60.24″
Equipped With (subject to buyer verification):
Mazatrol Matrix Control
40 KM-Tool Magazine
Mazak Super Flow V8/1000 Variable High Pressure Coolant
Chip Conveyor
**12” Thru Hole Chuck 1st Spindle
**10” Kitagawa B210 Chuck on Sub Spindle
**Must be verified by buyer if Included
