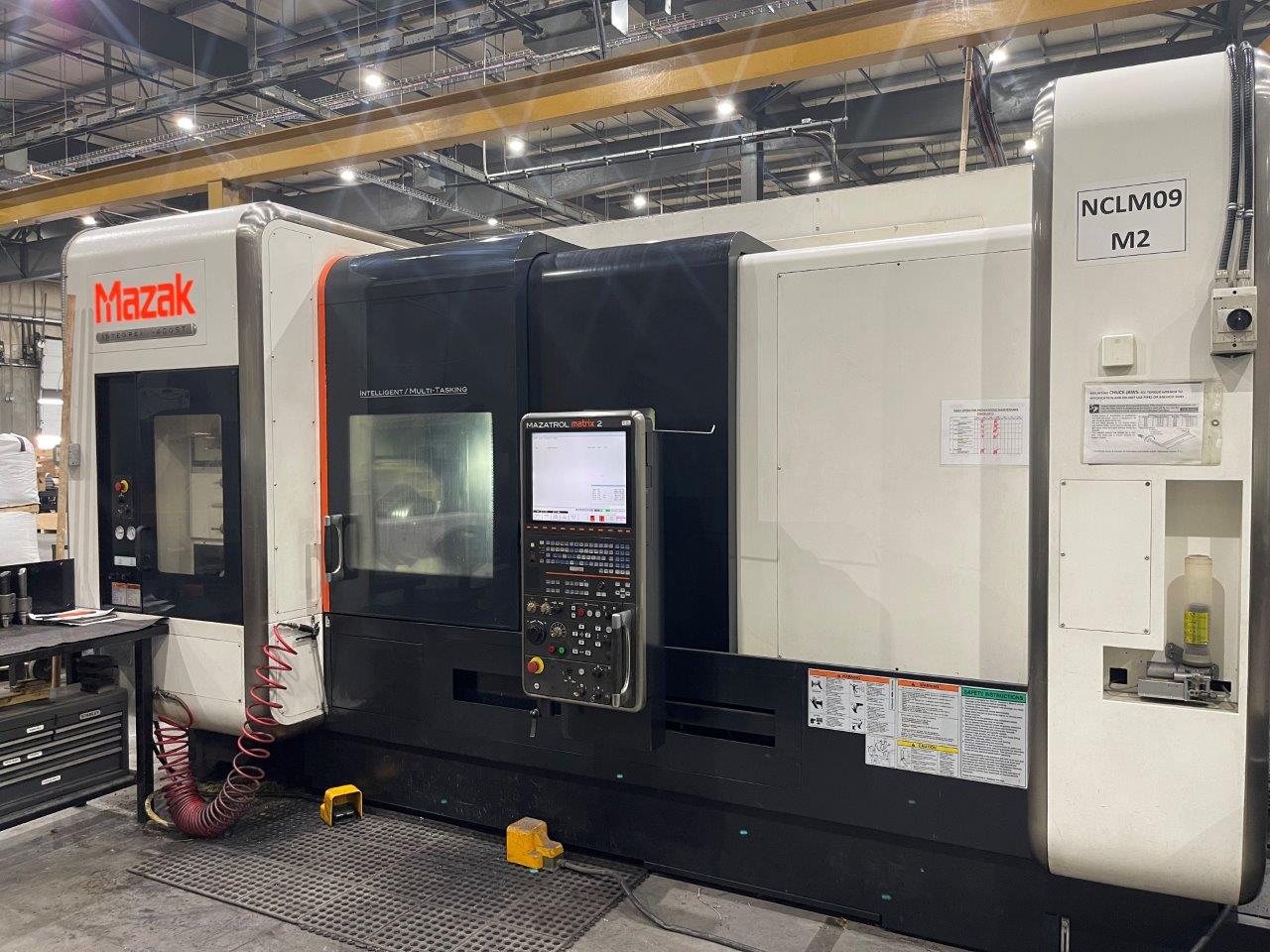

Mazak Integrex i400ST (2011)

SKU: Mazak-Integrex-i400ST-(2011) ,





CAPACITY:

MAXIMUM SWING 26.91″

MAXIMUM MACHINING DIAMETER 26.91″

MAXIMUM BAR CAPACITY 4.0″

MAXIMUM MACHINING LENGTH 69.80″

X-AXIS TRAVEL 24.21″

Y-AXIS TRAVEL +/-4.92″

Z-AXIS TRAVEL 62.40″

C-AXIS ROTATION 0.0001 DEGREES

MAIN & SUB SPINDLES:

MAIN SPINDLE SIZE 12″

MAIN SPINDLE SPEED 3300 RPM

MAIN SPINDLE DRIVE MOTOR 40 HP

SUB SPINDLE CHUCK SIZE 10″

SUB SPINDLE CHUCK SIZE 4000 RPM

SUB SPINDLE DRIVE MOTOR 30 HP

B-AXIS MILLING SPINDLE:

DEGREE OF SWIVEL -30/+120 DEGREES

MAXIMUM SPEED 12,000 RPM

DRIVE MOTOR 30 HP

TOOL CHANGER:

TOOL STORAGE 36 ATC

TOOLING TYPE CAPTO C

FEEDS:

RAQPID TRAVERSE, X & Z AXES 1969 IPM

RAPID TRAVERSE, Y-AXIS 1575 IPM



EQUIPPED WITH:

MAZATROL MATRIX-2 CNC CONTROL

12″ CHUCK ON MAIN SPINDLE

10″ CHUCK ON SUB SPINDLE

B-AXIS SWIVEL MILLING SPINDLE

9-POSITION LOWER TURRET

36-POSITION AUTOMATIC TOOL CHANGER

C-AXIS CONTOURING (.0001 DEG. MINIMUM INDEX)

MAZAK HIGH PRESSURE SUPER FLOW COOLANT THRU SPINDLE

CHIP CONVEYOR
