MAZAK M5 x 2500 – 1998

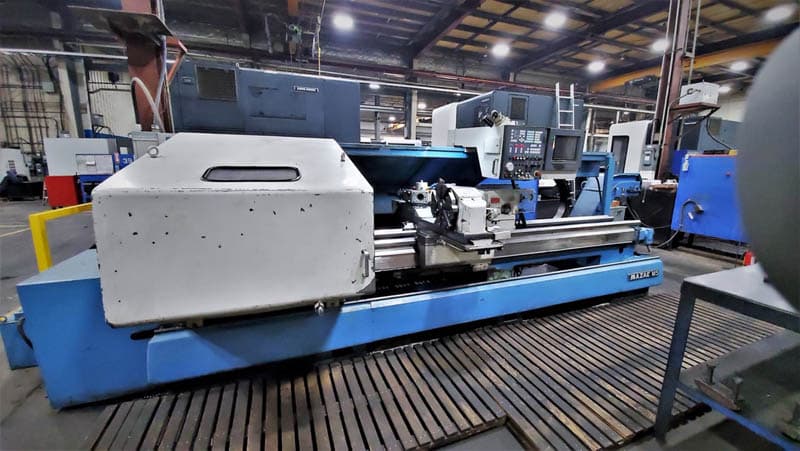

1998 MAZAK Model M5-2500 CNC Turning Center with 6.5” hole thru the spindle.
Specifications:
Max Turning Diameter: 13.0′′ Max Turning Length: 102′′
Max Bar Capacity: 6.5”
Swing Over Bed: 24.0′′
Distance Between Centers: 100′′ X Axis Travel: 21.26′′
Z Axis Travel: 98.5′′
Rapid Traverse X Axis: 394 IPM Rapid Traverse Z Axis: 394 IPM Spindle Nose: A2-11
Spindle Bore: 6.5′′
Spindle Speed: 20 – 2000 RPM Spindle Motor: 30 HP
Vertical Turret Capacity: 8 Stations Horizontal Turret Capacity:
6 Stations Turret Index Time: 1 Second
Tailstock Taper: MT-5
Tailstock Quill Dia.: 3.97′′
Tailstock Quill Travel: 4.7′′
General:
Power: 30 kva, 220v / 3-Phase
Overall Dimensions: 228′′ X 90′′ X 78′′ High
Overall Dimensions: 288′′ X 90′′ X 78′′High with Chip Conveyor Weight: 16000 lbs
MAZAK M5-2500 Equipped With:
T-Plus
A2-11 Gear Head Spindle
20′′ 4 Jaw Chuck (Rear)
Samchully Rota-5 3 -Jaw Chuck (Front)
2 Turrets – 8 Station Vertical and 6 Station Horizontal
Heavy Duty Tailstock and Quill RS-232 Port
Coolant System
Chip Conveyor
