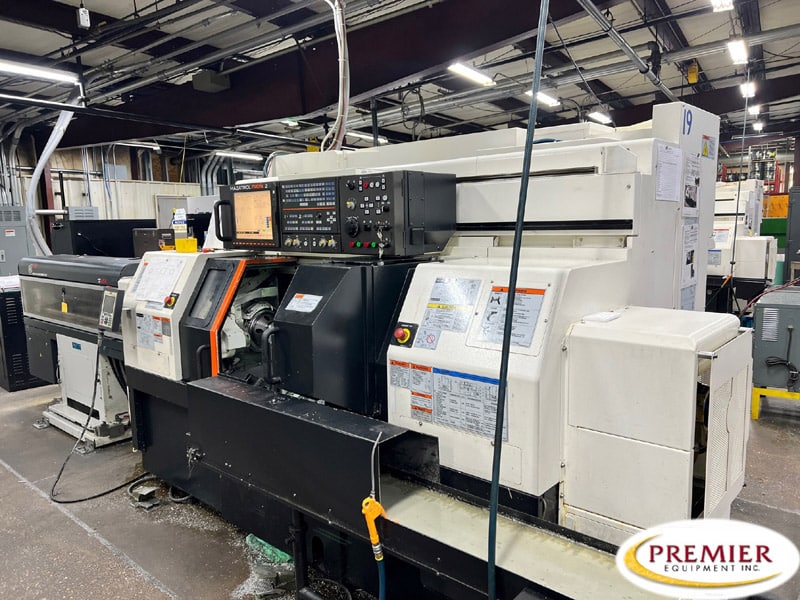

Mazak Multiplex 6200 Twin Spindle CNC Lathe
Specifications
Main Spindle Chuck Collet
Maximum Swing 12.5″
Maximum Cutting Diameter 12.5″
Maximum Machining Length 7.09 – 20.9″
Main Spindle HP 20/30 HP
Main Spindle RPM 5000 RPM
Main Spindle Nose A2-6
Main Spindle Bore 2.99″
Number of Tool Stations 12 & 12
Milling Spindle RPM 4500 RPM
X Axis Travel 9.05″
Z Axis Travel 17.25″
C Axis Positioning 0.001 Deg.
Rapid Traverse Rate X 1200 IPM
Rapid Traverse Rate Z 1300 IPM
Rapid Traverse Rate C 400 RPM
2nd Spindle Chuck Collet
2nd Spindle Nose A2-6
2nd Spindle Bore 2.4″
2nd Spindle RPM5000 RPM
Equipped With:
Mazatrol Matrix 2 Control
Chip Conveyor
Hi-Volume Coolant (51PSI)
Workpiece Unloading Package
Turret Air Blast
LNS Quick Load Servo S3 BarFeed
Overload Detection
Big Bore on Main Spindle
