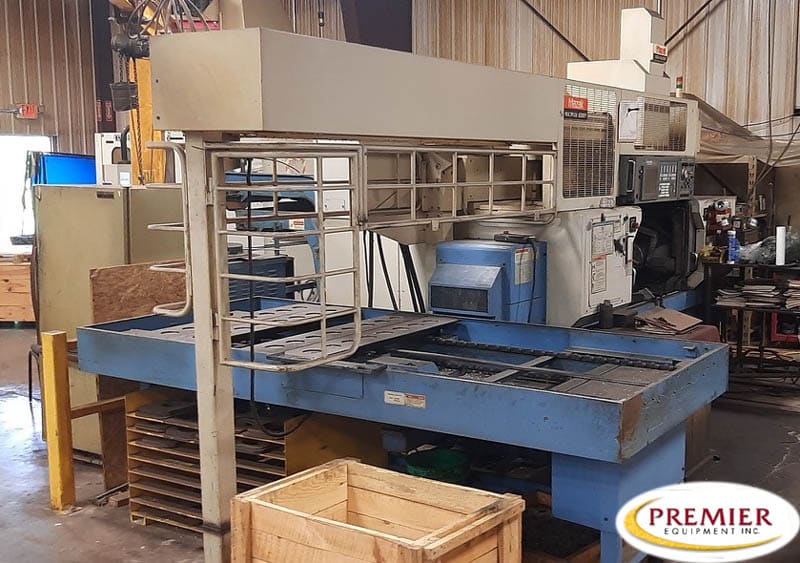

Mazak Multiplex 6200Y with Gantry
Multi-Axis CNC Lathe
Specifications (subject to buyer verification):
Maximum Swing……………………….. 12.5″
Standard Cutting Diameter…………….. 10.24″
Maximum Bar Diameter…………………. 2.0″
Maximum Machining Length for Chuckwork … 7.0″
Maximum Machining Length for Shaftwork .. 21.0″
MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position)…… 46.85″
Min…………………………….. 10.15″
Spindle Nose………………………… A2-6
Spindle Bore………………………… 2.4″
Spindle Speed/Ranges…………………. 35-5,000 RPM/1
Spindle Indexing (C-Axis)…………….. .001 deg./360,000 Positions
Spindle Horsepower (cont/30 Min)………. 20/30 HP (AC)
Spindle Torque………………………. 258.2 ft.-lbs.
TURRET (L&R)
Type of Turrets……………………… Dodecagonal/Drum Non-lift
Turret Index Time (1 Step)……………. 0.2 sec.
Total Number of Tools
(Rotary Avail./All Positions)…. 24 (12×2)
Tool Size (Turning & Facing)………….. 1″ x 1″
Tool Size (Boring Bar Max. Dia.)………. 1-1/2″
MILL SPINDLE (L&R)
Spindle Speed……………………….. 4500 RPM
Spindle Horsepower (10 Min)…………… 5 HP (A.C.)
Maximum Drill……………………….. 0.79″
Maximum End Mill…………………….. 0.79″
Maximum Tap…………………………. 1/2 – 13 UNC
AXIS
Travel Y-Axis (L&R)………………….. +/- 2.0″
Travel X-Axis (L&R)………………….. 9.37″
Travel Z-Axis (L)……………………. 17.25″
(R)……………………. 19.37″
Rapid Traverse: Y-Axis………………. 394 IPM
X-Axis………………. 1200 IPM
Z-Axis………………. 1300 IPM
C-Axis………………. 400 RPM
MACHINE
Machine Floor Space (W x L)
W/O Automation or Bar Feeder, etc….. 81.5″ x 140.6″
Machine Height………………………. 82.3″
Total Power Required (Machine Only)……. 80.1 KVA
NOTE: Actual Machine Main Transformer
KVA Rating Will be Greater
Air Requirements…………………….. 71 PSI / 14 CFM
Total Weight (For Machine Only)……….. 18,480 lbs.
Equipped With (subject to buyer verification):
Mazatrol Fusion 640T Control
PCMCIA Interface (2-Slot)
3.5” Floppy Disk Drive
2 GB Hard Drive
Kitagawa B210A6 10” Chucks
GL-150N Gantry Robot with an 8 Pallet Pitch Feed Conveyor
Robot Controller MAC GL with Teach Pendant
Automatic Chuck Jaws Open/Close (L&R)
Automatic Center Partition
Chuck Air Blast L&R
L&R Tool Eye
Robot Hand Type “D3”
Jaw Types A and B for D3 Hand
Pitch Feed Conveyor with 8 Pallet for Chuck Work Pallet Adapters
Auto Top Doors Open & Close
Work Transfer Air Blast
“U” Hand for GL-150N Gantry System
Mayfran Consep 2000
1000 PSI High Pressure Prep Only
Overload Detector L&R
Milling Spindle Synchronous Tapping L&R
Cylindrical Interpolation Command
213 PSI Coolant System
Air Blast Through Spindle L&R
Auto Power Off (Breaker Trip)
Operation Condition Lights (3 Colors)
EIA/ISO Option Package (Y-Axis Machines)
