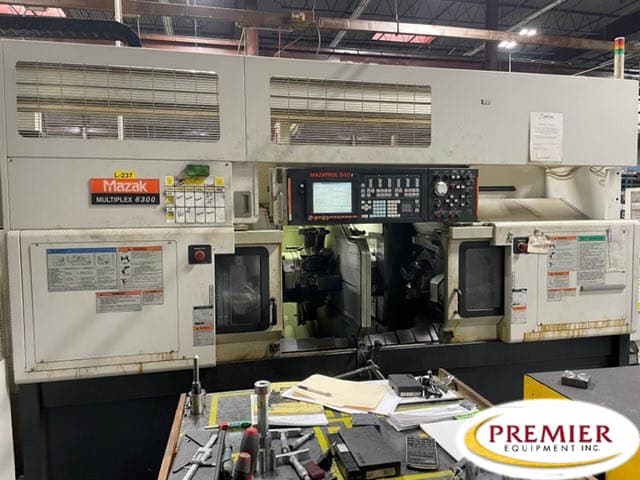

Mazak Multiplex 6300 with Gantry – 2010

YouTube video

Mazak Multiplex 6300 with GL-200F Gantry Robot Twin Spindle, Twin Turret CNC Turning Center with Milling

Specifications (subject to buyer verification):
Maximum Swing…………………………………… 16.93″
Standard Cutting Diameter……………………… 13.0″
Maximum Cutting Diameter……………………… 16.93″
Maximum Cutting Length Chuckwork…………… 8.86″
Maximum Cutting Length Shaftwork…………… 25.59″

MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position)……… 57.09″
Min……………………………………………… 9.82″
Spindle Nose………………………………………. A2-8
Spindle Bore……………………………………….. 3.46″
Maximum Bar Diameter…………………………… 3.0″
Spindle Speed/Ranges……………………………. 4,000 RPM/1
Spindle Indexing (C-Axis)………………………… .001 deg./360,000 Positions
Spindle Horsepower (30 min.)……………………. 30 HP (AC)
Spindle Torque……………………………………… 441.34 ft.-lbs.

TURRET (L&R)
Type of Turrets……………………………………. Dodecagonal/Drum Non-Lift
Tool Holder Shanks……………………………….. Modified VDI
Turret Index Time (1 Step)……………………… 0.3 Sec.
Total Number of Tools:
(Rotary Avail./All Positions)……………….. 24 (12×2)
Tool Size:
Turning & Facing………………………………. 1″ x 1″
Boring Bar Maximum Diameter……………… 2″

MILL SPINDLE (L&R)
Spindle Speed………………………………………. 4,000 RPM
Spindle Horsepower (10 Min)…………………….. 10 HP (A.C.)
Spindle Torque (4000 RPM)………………………. 57.88 ft.-lbs.
Maximum Drill………………………………………. 7/8″
Maximum End Mill………………………………….. 13/16″
Maximum Tap……………………………………….. 8- 5/8 UNC

AXIS
Travel:
X-Axis (L&R)…………………………………… 12.2″
Z-Axis (L&R)…………………………………… 23.82″
Rapid Traverse:
X-Axis…………………………………………… 945 IPM
Z-Axis…………………………………………… 945 IPM
C-Axis…………………………………………… 400 RPM

MACHINE
Machine Floor Space (W x L):
W/O Automation or Bar Feeder, etc………. 95.3″ x 167.7″
Machine Height…………………………………….. 82.68″
Total Power Required (Machine Only)…………. 68 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will be Greater
Air Requirements………………………………….. 71 psi / 14 CFM
Total Weight (For Machine Only)……………….. 25,740 lbs.

GL200F GANTRY ROBOT SPECIFICATIONS:

ROBOT
Maximum Workpiece Weight… 44 Lbs. x 2
Body Traverse Speed…….. 4728 IPM
Arm Up/Down Speed………. 2364 IPM

CONTROLLER
Type………………….. Mazatrol Fusion 640
Teaching Method………… Teaching-less, Fixed pattern
Memory Capacity………… No limit on number of programs
limited by hard drive space.
HAND TYPE “D3” (STD)
Type of Workpiece………. Round Chuck Work
Construction…………… Double Hand
Gripping………………. 3-Jaw Centripetal
Workpiece……………… 11.81″Dia. x 5.91″L/44 lbs.x 2

TYPE III PITCH FEED CONVEYOR
Number of Pallets………. 6
Type of Workpiece………. Chuckwork

Equipped With (subject to buyer verification):
Mazatrol PC-Fusion 640T CNC Control
N-EIA/ISO Option Package
PCMCIA Interface (2-Slot)
Network Interface (For LAN & Modem)
Main Spindle Motor 30 HP L&R
Spindle Speed 4000 RPM L&R
C-Axis 0.001 Degree Incr. L&R
12 Position Drum Turret (VDI Strt. Shank)
Rotary-Tool Spindle Speed 4000 RPM L&R / 57.88 ft-lbs
Automatic Tool eye L&R
Milling Spindle Synchronous Tapping L&R
Relocation Device
Windows 2000 Operating System for Mazak Machine Control
Overload Detector L&R
Auto Power On/Off + Warm-up
Chuck Air Blast L&R
Turret Air Blast L&R
Air Blow for Work Transfer
Chip Conveyor Rear Disposal (Hinge Type)
Auto Pecking Cycle with Load Detection
GL200F/Pitch-Feed Type 3/D2-Hand
