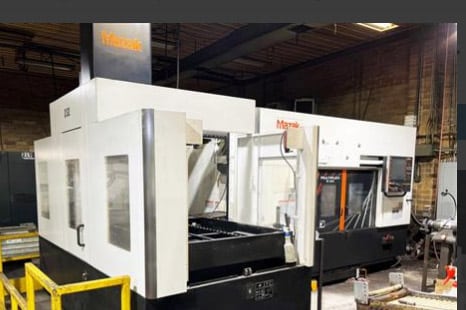

Mazak Multiplex W-200 Dual Spindle / Dual Turret CNC Turning Center
SPECIFICATIONS:
CAPACITY MAX. SWING 12.6″
MAX. MACHINING DIAMETER 12.6″
MAX. MACHINING LENGTH 7.09″
DISTANCE BETWEEN SPINDLES 48″
MAX. WEIGHT*1: CHUCK WORKPIECE 660 LBS
BAR WORK CAPACITY*2 2.5″
TRAVEL X AXIS 10.75″
Z AXIS Z1= 19.125″ / Z2= 20.625″
C AXIS 360°
NUMBER OF SPINDLES 2
SPINDLE SPEEDS 5000 RPM
NUMBER OF SPINDLE SPEED RANGES 1-STEPLESS
MINIMUM SPINDLE INDEXING INCREMENT 0.0001°
TURRET NUMBER OF TURRETS 2
NUMBER OF TOOLS 12 POSITION DRUM TURRET × 2
TOOL SHANK HOLDER VDI
TOOL SHANK HEIGHT 1″
BORING BAR SHANK DIAMETER 1.57″
SPINDLE MOTOR 30/20 HP
EQUIPPED WITH:
MAZATROL SMOOTH G CONTROL W/ 19″ COLOR LCD (TOUCH SCREEN)
MANUAL PULSE GENERATOR
TAPPING
COOLANT THRU SPINDLE
HIGH PRESSURE COOLANT SYSTEM
8″ KITAGAWA CHUCKS
TOOL EYE
CHUCK AIR BLAST
MAYFRAM REAR HINGE CHIP CONVEYOR
COMPLETE COOLANT SYSTEM
