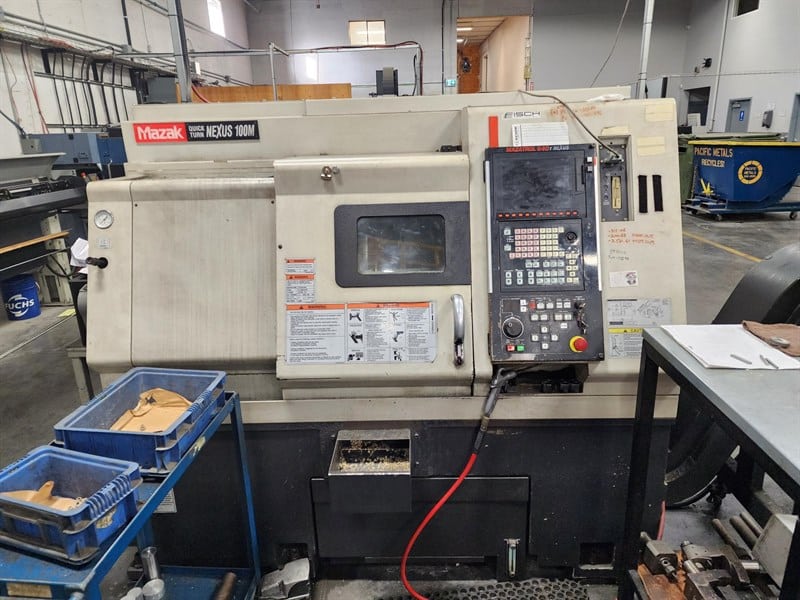

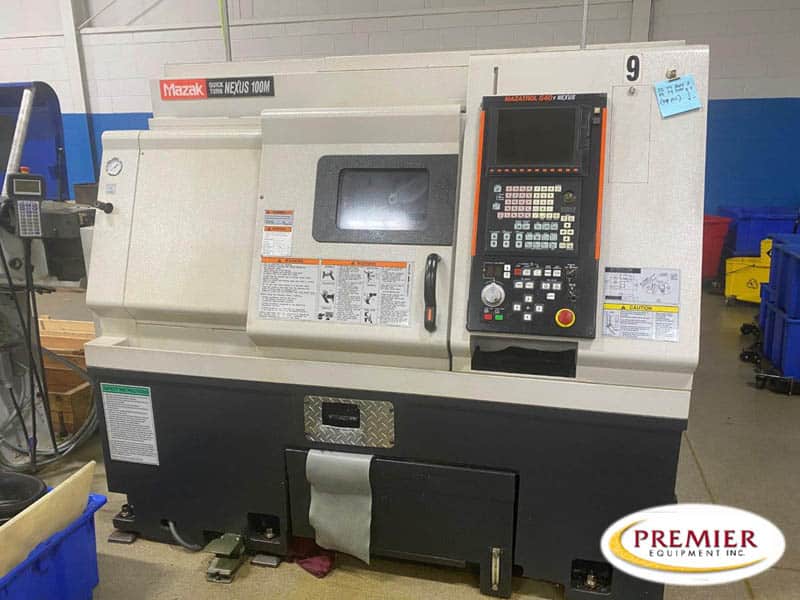

Mazak Quick Turn Nexus 100M 3-Axis CNC Lathe / QTN100M / QTN-100M
Specs
Swing Over Bed 21.65″
Turning Diameter, Shaft Diameter 11″
Machining Length 12.1″
Distance Between Centers 12.2″
Chuck Size 1, 2 6″
Spindle Nose 1, 2 A2-5
Spindle Bore Diameter 1, 2 2.0″
Spindle Bar Capacity 1, 2 1.6″
Spindle Speeds 1, 2 6000 RPM
Spindle Horsepower 1, 2 15 HP
X – Axis Travel 1, 2 7.25″
Z – Axis Travel 1, 2 13″
C – Axis Travel 1, 2 .001 DEG.
Rapid Traverse Rates X1, X2 1181 IPM
Rapid Traverse Rates Z1, Z2 1299 IPM
Turret Configuration 1, 2 12
Turret Rotary Tool Spindle Speed 1, 2 4500 RPM
Turret Rotary Tool Horse Power 1, 2 7.5 HP
Tailstock Quill Diameter 3.1″
Tailstock Quill Travel 3.1″
Programmable Tailstock Yes
Tailstock Travel 12″
Machine Weight 7700 Lbs.
Equipped with
AUTO ATLM AUTO PARTS CATCHER
BACKGROUND PATH CHECK CHIP CONVEYOR
MAZATROL 640T CNC CONTROL ROTARY AND STATIC TOOL HOLDERS
SYNCHRO TAPPING
