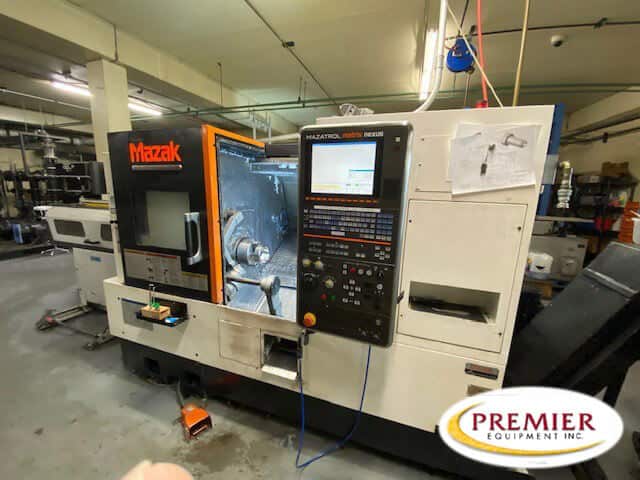

Mazak Nexus 200MS-II – 2011

Mazak Quick Turn Nexus 200MS-II CNC Turning Center
Specifications (subject to buyer verification):Swing Over Bed 26.5″
Turning Diameter, Shaft Diameter 13.78″
Machining Length 21.27″
Distance Between Spindles 22.7″
Chuck Size 1, 2 8″, 6″
Spindle Nose 1, 2 A2-6, A2-5
Spindle Bore Diameter 1, 2 2.99″
Spindle Bar Capacity 1, 2 2.56″
Spindle Speeds 1, 2 5000, 6000 RPM
Spindle Horsepower 1, 2 35, 15 HP
X – Axis Travel 1, 2 9″
Z – Axis Travel 1, 2 21.28″
C – Axis Travel 1, 2 .001, .001 Degrees
W – Axis Travel Sub Spindle 23″
Rapid Traverse Rates X1, X2 1181 IPM
Rapid Traverse Rates Z1, Z2 1229 IPM
Rapid Traverse Rate W Axis 826 IPM
Turret Configuration 1, 2 12 Stations
Turret Rotary Tool Spindle Speed 1, 2 4500 RPM
Turret Rotary Tool Horse Power 1, 2 7.5 HP
Machine Weight 11,243 Lbs.
Equipped with
2ND AUX. FUNCTION 600 VARIABLE SETS
BAR FEED INTERFACE CHIP CONVEYOR
COMPARISON STOP CYLINDER
EIA HELICAL TAP AND PATTERN CYCLES G54.1
HIGH PRESSURE COOLANT INVERSE TIME
LNS QUICK LOAD 65 SHORT MAGAZINE LOADER MAZAK MATRIX CNC CONTROL
PARTS CATCHER PITCH ERROR COMP
POLAR COORDINATE INPUT SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
SUB-C-AXIS CONTROL SYNC. MILL TAPPING
THREAD TILTED WORKPLANE
TOOL PRESETTER
