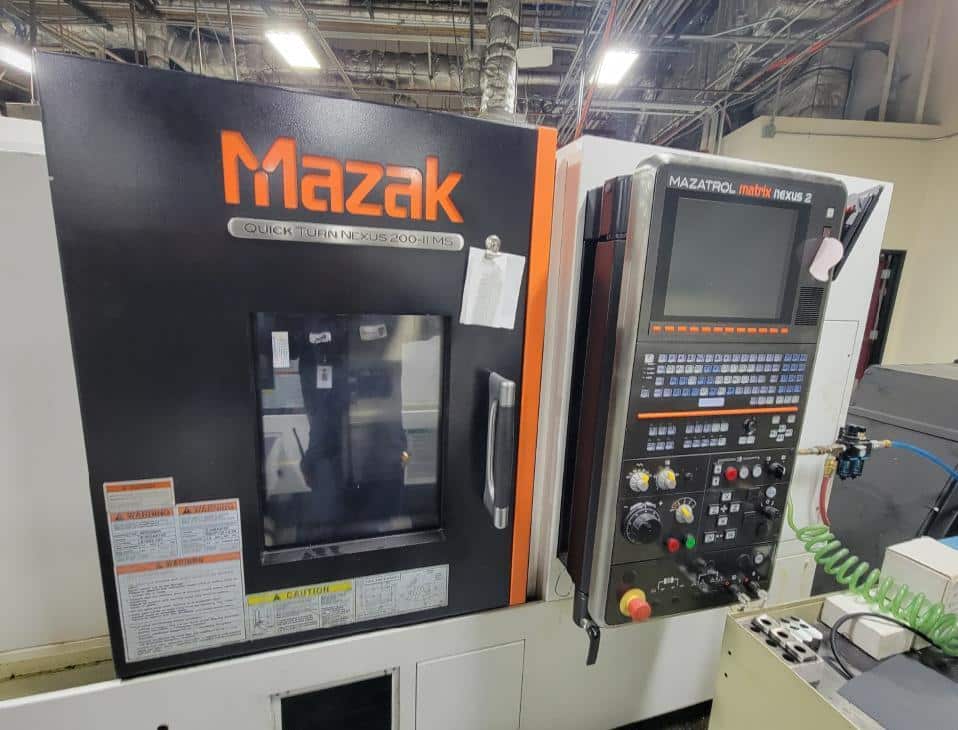

Mazak Nexus 200MS-II – 2016

Mazak Quick Turn Nexus 200MS-II CNC Turning Center with Sub-Spindle & Milling

Specifications (subject to buyer verification):
Maximum Swing.………………………………………………. 26.5”
Standard Machining Diameter……………………………. 10.87”
Maximum Machining Diameter.…………………………. 14.75”
Maximum Support Weight (1st/2nd Spindle)………. 661 Lbs / 330 Lbs
1st Spindle Motor (30min rating.………………………… 35 HP
Spindle Bore………………………………………………………. 3.0”
Standard Bar Capacity………………………………………. 2.0”
Spindle Speed…………………………………………………….. 35 ~ 5,000 RPM
Spindle Nose……………………………………………………… A2-6
Number of Tools………………………………………………… 12
Tool Size (outside / inside)…………………………………. 1.0” / 1.5”
Turret Index Time (one/full)……………………………….. 0.2 sec/0.6 sec
Mill Spindle Motor………………………………………………. 7.5 HP
Mill Spindle Speed………………………………………………. 4,500 RPM
Feed Axis Travel (X/Z/W)………………….………………… 9.0” / 22.625 / 23.0”
Feed Axis Rapid Traverse (X/Z/W)………….………….. 1,181 / 1,299 /1,181 IPM
Second Spindle Speed.……………………………………….. 35 ~ 6,000 RPM
Second Spindle Nose………………………………………….. A2-5
Second Spindle Motor (25% ED)…….………………….. 15HP
Coolant Tank Capacity……………………………………….. 50.2 Gal (US)
Machine Height……….,……………………………………….. 72.4”
Floor Space……………………….………………………………. 115.4” x 70.1”
Machine Weight………………….……………………………. 11,243 LBS

Equipped With (subject to buyer verification):
MAZATROL MATRIX NEXUS 2 CONTROL
CHIP CONVEYOR SIDE DISPOSAL (HINGE TYPE)
AUTOMATIC PARTS CATCHER (DIA. 2.52″ X 4.7″ X 5.5 LBS)
