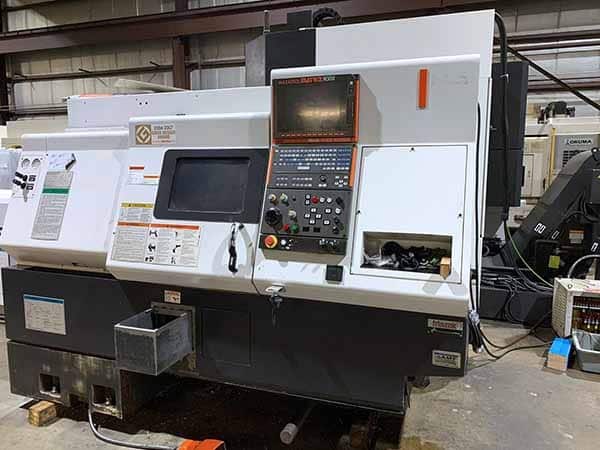

MAZAK QTN-200MY-II / QTN200MY2 / QTN-200MY-II
SPECIFICATIONS
WORK-CAPACITY MAX. SWING DIAMETER 26.5″ in
WORK-CAPACITY MAX. MACHINING DIAMETER 14.9″ in
WORK-CAPACITY MAX. MACHINING LENGTH 21.1″ in
WORK-CAPACITY MAX. BAR MATERIAL DIAMETER 2.5″ in
TRAVEL X-AXIS STROKE 9″ in
TRAVEL Y-AXIS STROKE 3.9″ in +/-1.9″ in
TRAVEL Z-AXIS STROKE 22.6″ in
MAIN-SPINDLE SPEED 35-5.000 RPM
MAIN SPINDLE MOTOR 26 kW
MAX. TORQUE 465 Nm
SPINDLE NOSE A2 – 6“
SPINDLE BORE 2.99″
SPINDLE INDEXING INCREMENTS 0 deg – 360 deg/ 0.001 deg
ROTARY TOOLS SPINDLE SPEED 25-4.500 RPM
ROTARY TOOLS POWER 5,5 kW
ROTARY TOOLS MAX. TORQUE 35 Nm
RAPID TRAVERSE RATE X-AXIS 1.18″in/min
RAPID TRAVERSE RATE Y-AXIS .82″ in/min
RAPID TRAVERSE RATE Z-AXIS 1.29″ in/min
RAPID TRAVERSE RATE C-AXIS 555 RPM
CUTTING FEED RATE X/Y/Z-AXIS 0.7″ in/min
CUTTING FEED RATE TAILSTOCK CENTER MK 5
CUTTING FEED RATE TAILSTOCK TRAVEL 21.6″ in
ELECTRICAL POWER SUPPLY 47,4 KVA
MACHINE WEIGHT 11243.5 lbs
MACHINE SIZE (L X B X H) APPROX. .10″ x .07″ x .078″
OPTIONS / EQUIPPED WITH
Mazatrol Matrix Nexus
KITAGAWA HYDRAULIC-CHUCK BB-208
DIAMETER: 210 MM TOOL SETTER (MAZAK TOOL EYE SYSTEM)
C-AXIS
Y-AXIS
DOUBLE FOOT SWITCH FOR OPENING / CLOSING THE CHUCK
AUTOMATIC OPENING/CLOSING OF CHUCK
CHUCK STATUS FEEDBACK (OPEN/CLOSED)
NC-PROGRAMMABLE TAILSTOCK
FRONT DOOR LOCK
COMPL. COOLANT SYSTEM
COOLANT AND CHIP PROTECTION
WORKSPACE ILLUMINATION
SYNCHRON-TAPPING
USER MACRO (600 VARIABLES)
MAZAK TORNADO EIA/ISO
EIA/ISO INPUT FUNCTION
OPTIONAL STOP
TAPPING FUNCTION
POLAR COORDINATE ENTRY (G122)
DIRECT DATA INPUT FUNCTION DRAWING
USB INTERFACE (X 2)
LAN INTERFACE
INTELLIGENT HEAT SHIELD
INTELLIGENT DANGER SIGN
MAZAK LANGUAGE SUPPORT
VIRTUAL MACHINING
