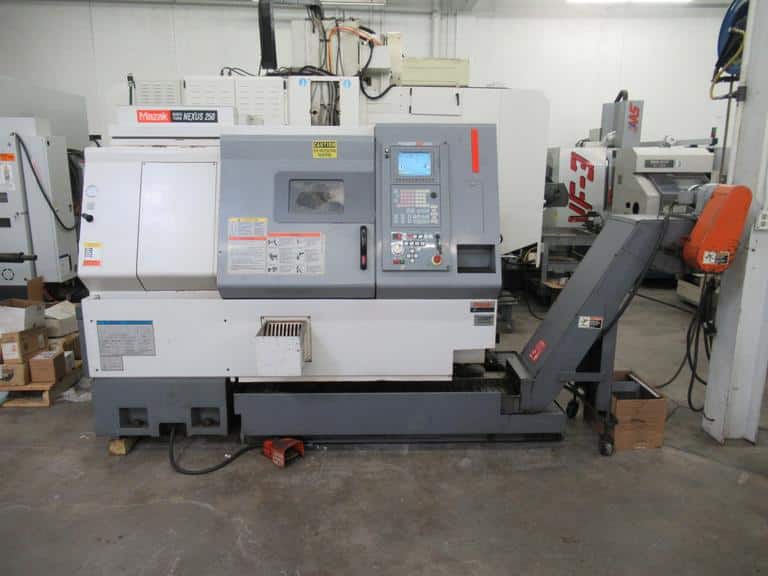

Mazak Quick Turn Nexus 250 (Mazak QT Nexus 250 / QTN250 / QTN-250)
Specification:
Control Mazatrol Fusion 640T
Max Swing Over Bed 24.02″
Max Turning Diameter 13.78″
Distance Spindle Nose to Turret 25.31″
Spindle Speeds 35-4000RPM
Spindle Drive 35HP 260ft lbs. Torque
Max Bar Capacity 3.03″
Turret Capacity 12 Tool
Turret Index Time .65 Seconds
Turret Travels (X,Z) X-7.48″ Z-20.475″
Rapid Traverse Rate (X/Z) X-98.4ft/min Z-108.2 ft/min
Tailstock? Yes
Tailstock Travel 20.67″
Tailstock Quill Diameter / Taper Morse Taper #5
Equipped With:
Tool Setter,Mazatrol Fusion 640T Control, Parts Catcher, Live Center, Kitagawa B-210 10″ 3-Jaw Chuck,
12-Station Turret with Boring Holders & Wedge Clamps, Chip Conveyor, Coolant Tank, Keys, RS232 Port,
3-1/2″ Floppy Drive.
