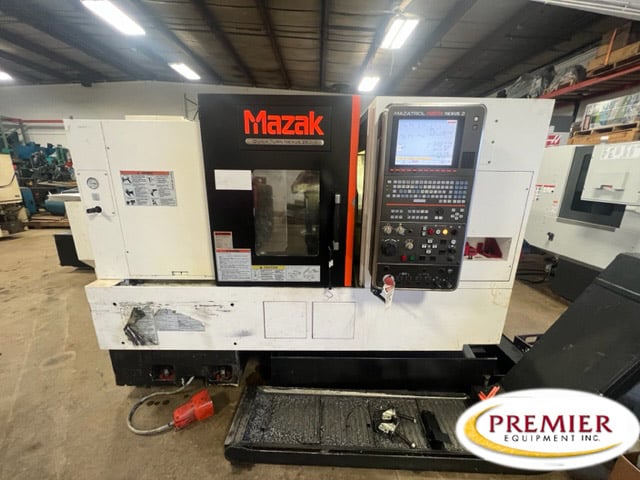

Mazak Quick Turn Nexus 250II CNC Lathe / QTN250II / QTN-250II
Specifications (subject to buyer verification):
Maximum Swing………………………… 24″
Swing Over Cross Slide………………… 14″
Standard Machining Diameter……………. 10.39″
Maximum Machining Length………………. 18.73″
Spindle Motor………………………… 35 / 30 (30 MIN/CONT.)
Spindle Bore…………………………. 3.58″
Standard Bar Capacity…………………. 3.00″
Spindle Speed………………………… 4,000 RPM
Spindle Nose…………………………. A2-8
Number of Tools………………………. 12
X-Axis Travel………………………… 7.5″
Z-Axis Travel………………………… 20.25″
Rapid Traverse Rates X-Axis……………. 1181 IPM
Rapid Traverse Rates Z-Axis……………. 1299 IPM
Tailstock Travel……………………… 20.75″
Equipped With (subject to buyer verification):
MAZATROL Matrix Nexus 2 Control
Tool Eye
Tailstock
Chip Conveyor
