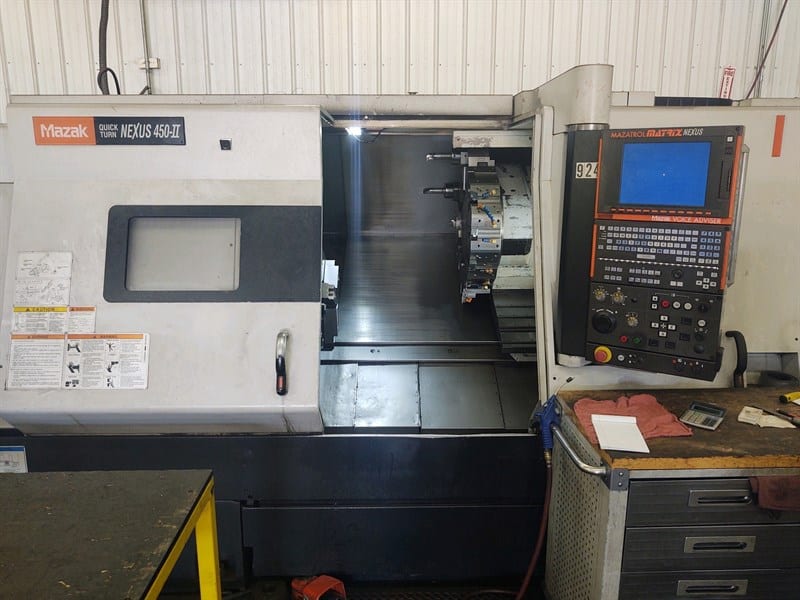

Mazak Quick Turn Nexus 450II / QTN450 / QTN-450
Specifications (subject to buyer verification):
Swing Over Bed 33.26″
Turning Diameter, Shaft Diameter 22.83″
Machining Length 40.2″
Distance Between Centers 42″
Chuck Size 1, 2 18
Spindle Nose 1, 2 A2 – 15
Spindle Bore Diameter 1, 2 7.2″
Spindle Bar Capacity 1, 2 6.49″
Spindle Speeds 1, 2 2000 RPM
Spindle Horsepower 1, 2 40 HP
Spindle Torque 1363 FT. – LBS.
X – Axis Travel 1, 2 12.21″
Z – Axis Travel 1, 2 40.12″
Rapid Traverse Rates X1, X2 1181 IPM
Rapid Traverse Rates Z1, Z2 1181 IPM
Turret Configuration 1, 2 12
Tailstock Taper MT 5
Programmable Tailstock YES
Tailstock Travel 40.37″
Machine Weight 19,401 LBS.
Equipped with
MAZATROL MATRIX CNC CONTROL
2 USB PORTS
2ND AUX FUNCTIONS
AUTOMATIC TOOL SETTER
CHIP CONVEYOR
COMPARISON STOP
DOOR INTERLOCK
EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE
EIA/ISO INPUT OPTION
INVERSE. TIME
PITCH ERROR COMP
POLAR COODINATE INPUT
SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
THREAD
TILTED WORKING PLANE
VARIABLE 600 SETS
