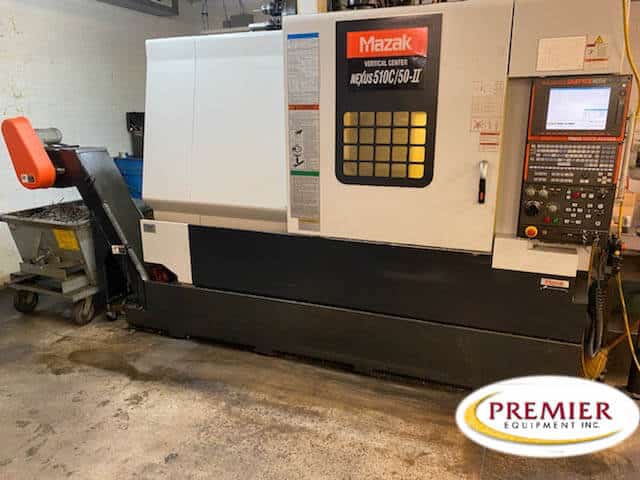

Mazak Vertical Center Nexus 510C/50II / VCN510C50II
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size…………………………… 51.1″ x 21.6″
X-Axis Stroke………………………… 41.3″
Y-Axis Stroke………………………… 20.0″
Z-Axis Stroke………………………… 23.0″
Spindle Face to Table Surface(Min/Max)….. 5.91″/28.94″
Maximum Table Weight Capacity………….. 2,646 LBS
Spindle Speed………………………… 6,000 RPM
Spindle Motor (30MIN/CONT.)……………. 30/25 HP
Spindle Taper ……………………….. #50
Rapid Traverse (X,Y,Z)………………… 1417 IPM
Number of Tools………………………. 30
Maximum Tool Diameter…………………. 4.1″
Maximum Tool Diameter (Adjacent Pockets)… 8.26″
Maximum Tool Length…………………… 13.78″
Maximum Tool Weight…………………… 33 LBS.
Tool Select Method……………………. RANDOM
Tool Change Time (Tool to Tool)………… 2.0 SEC
Power Supply (5 MIN/CONT)……………… 41.6/25.9 kVA
Air Supply…………………………… 72.52″
Machine Height……………………….. 129.17″
Floor Space………………………….. 113.3″ X 111.6″
Machine Weight……………………….. 14,616 LBS
Equipped With (subject to buyer verification):
Mazatrol Matrix
Auto Tool Length Measurement
30 ATC
Chip Conveyor
50 Taper
Thru Spindle Coolant
