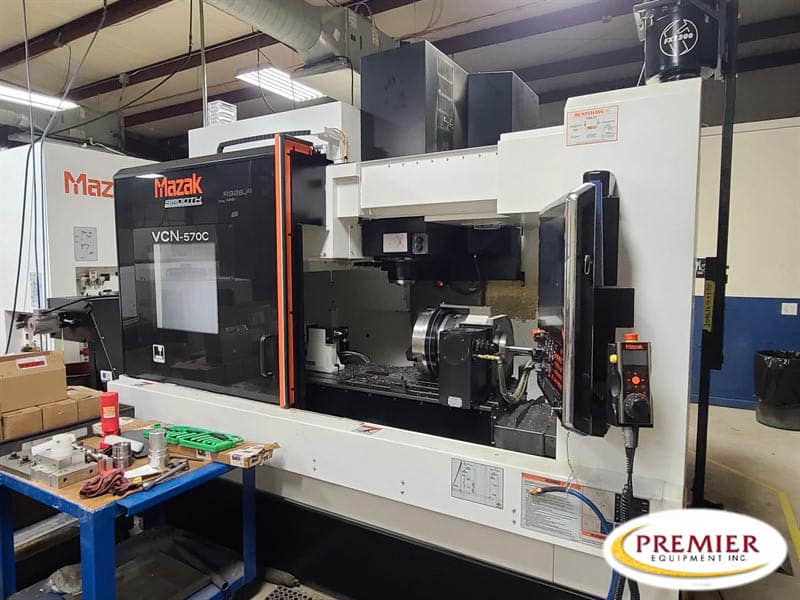

Mazak Nexus 570C – 2019

MAZAK VCN570C CNC 4 AXIS VERTICAL MACHINING CENTER / VCN-570C
Specs
Number Of Tables / Pallets 1
Table Size 51.18” X 22.44″
Weight On Table 2646 LBS.
Spindle Nose To Table 5.91″ ~ 25.98″
X – Axis Travel 41.34″
Y – Axis Travel 22.44″
Z – Axis Travel 20.08″
Rapid Traverse X, Y, Z 1645 IPM
Cutting Feed Rate 1645 IPM
Spindle Speed 15,000 RPM
Spindle Taper 40
Main Motor 30 HP
Automatic Tool Changer 30 ATC
Tool Diameter 3.15″, 4.92″
Tool Length 13.78″
Tool Weight 17.64 LBS.
Machine Weight 15,000 LBS
Equipped with
2ND AUX. FUNCTIONING, TILTED WORK PLANE AIR THRU SPINDLE WHILE RUNNING
ALL AVAILABLE MANUALS AUTOMATIC FRONT DOOR
B)00 SLOPE CONSTANT CHIP CONVEYOR
COOLANT THROUGH SPINDLE W/FLOOD DUAL PROBING KIT OMP60/OTSAA W/ EIA INSPECT PLUS
EIA HELICAL TAP CYCLE, EIA PATTERN CYCLE EIA, SPIRAL, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT DATA I/O
EIA/ISO INPUT FUNCTION FULL ENCLOSURE
G54.1, SYNC TAP, ROT-AXIS SHAPE COMP, G00 SLOPE, VARAIABLE 600 SETS, HAND HELD REMOTE MPG
HIGH SMOOTHING CONTROL HIGH SPEED
HIGH TORQUE SPINDLE MOTOR 30HP INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT, COMPARISON STOP
KITAGAWA TS320-RSA PNEUMATIC TAILSTOCK ($8,300) KY PRODUCTION PREP FOR AIR CHUCK/TAILSTOCK ($13,600)
KY PRODUCTION SUPPLIED ELECTRICAL INTERFACE FOR AIRCHUCK MAZAK API
MAZAK MR-320RAM01 NC ROTARY TABLE PACKAGE MAZATROL SMOOTH G CONTROL
PITCH ERROR COMP, VARIABLE ACC CONTROL, SUPPER HIGH SPEED, RAPID OVERLAP RELOCATION DEVICE
ROYAL PRODUCTS FILTERMIST FX-1200 SIGNAL TOWER
SMOOTH SET AND INSPECT SMW AUTOBLOK PNEUMATIC CHUCK SP350-115 ($24,000)
SYNCHRONOUS TAPPING TRANSFORMER
USB PORT INTERFACE
