MAZAK NEXUS 700D-II/50 – 2012

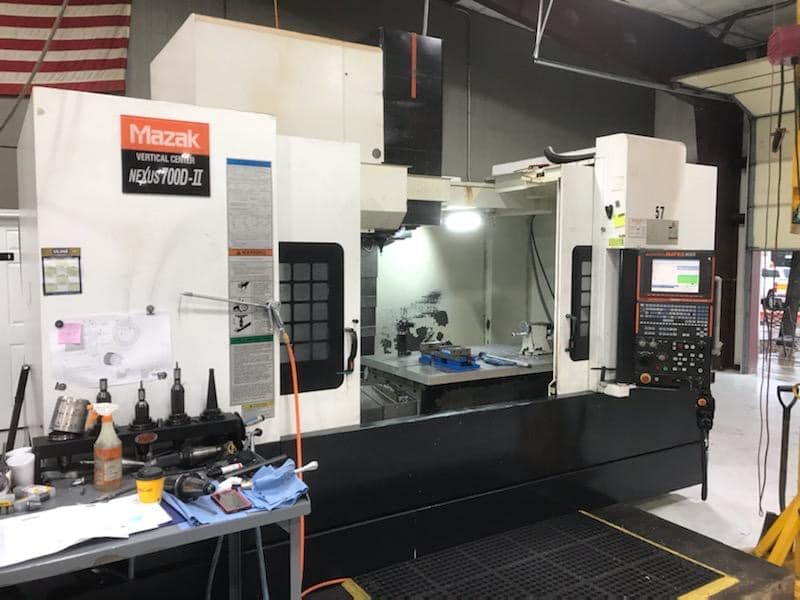

2012 MAZAK NEXUS 700D-II/50 CNC 4-AXIS VERTICAL MACHINING CENTER
Specs
Number Of Tables / Pallets 1
Table Size 68.5” X 27.56”
Weight On Table 4409 LBS.
Integrated NC Rotary Table Size 12″
Spindle Nose To Table 5.9” – 34.25”
X – Axis Travel 60.24″
Y – Axis Travel 27.56″
Z – Axis Travel 25.59″
A – Axis Indexing 0.0001 N/C CONTOURING
Rapid Traverse X, Y, Z 1181, 1181, 790 IPM
Cutting Feed Rate 1181 IPM
Spindle Speed 6000 RPM
Spindle Taper 50
Number Of Gear Ranges 2
Main Motor 30 HP
Automatic Tool Changer 24 ATC
Machine Weight 35,000 LBS.
Equipped with
ALL AVAILABLE MANUALS CHIP CONVEYOR
EIA/ISO AND ADDITIONAL EIA HIGH PRESSURE COOLANT THRU SPINDLE SYSTEM 213 PSI
LAN PORT MAZAK MR320 N/C ROTARY TABLE WITH TAILSTOCK
MAZTROL MATRIX 4-AXIS CNC CONTROL REMOTE MPG
SYNCRONIZED TAPPING TRANSFORMER
TS27R RENISHAW TOOL MEASUREMENT PROBE USB (2) PORT
WORKLIGHT
