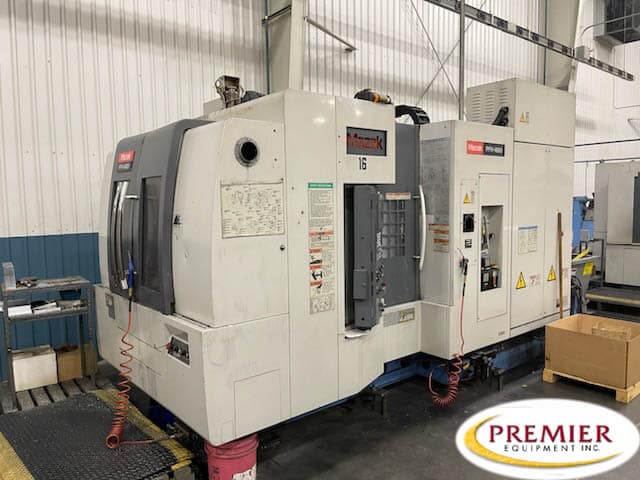

Mazak PFH4800 CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size………………………… 15.75″ x 15.75″
Floor Space Required………………… 95.7″ x 211.4″
Machine Height from Bottom of Base……. 110″
Total Power Required (Machine Only)…… 70 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will
Be Greater.
Machine Weight……………………… 22,040 lbs.
TRAVELS
X-Axis…………………………….. 22.05″
Y-Axis…………………………….. 24.8″
Z-Axis…………………………….. 23.62″
Distance from Spindle Center to
Top of Pallet……………………. 3.15″ – 28.0″
Distance from Spindle Nose to
Pallet Center……………………. 2.75″ – 26.37″
WORKPIECE SIZE
Maximum Table Load………………….. 880 lbs.
Maximum Workpiece Height…………….. 27.95″
With Through The Pallet Hydraulics…. 27.17″
Maximum Workpiece Diameter…………… 24.8″
SPINDLE
Spindle Nose……………………….. CAT #40
Spindle Speed Increment……………… 1 RPM
Number of Ranges……………………. 2
Tool Clamping Force…………………. 2,314 ft./lbs.
Spindle Bearings Front (Number/type)….. 2 Sets Ang Contact
Spindle Bearings Rear (Number/Type)…… 2 Sets Ang Contact
15,000 RPM SPINDLE
Spindle Horsepower (30 Min/Cont)……… 40/30 HP
Spindle RPM………………………… 15,000
AUTOMATIC TOOL CHANGER
Magazine Capacity…………………… 40
Equipped With (subject to buyer verification):
MAZATROL FUSION 640M
Cybertec CNC Option Package
Inch/Metric Conversion
PCMCIA Interface (2-Slot)
3.5” FDD Unit
Network Interface (For LAN & Modem)
NC Positioning Table 0.001 Deg. N/A Contouring
40 Tool Chain Magazine
Chip Conveyor
High Pressure Thru Spindle Coolant @ 213 PSI
Spindle Motor 40 HP / 15 Min
Spindle Speed 15,000 RPM (#40)
2 Pallet changer
Prep Only for MMS-B Optical Type MP10
High-Precision Boring Tornado Cycle
Coolant Temperature Control System
