(2004, 2006, 2007) Mazak PFH-5800 Palletech System
(3-Machine / 44-Station / 2-Load Station Palletech)
CNC Horizontal Machining Center
Specifications (subject to buyer verification):
Pallet Size………………………… 19.69″ x 19.69″
X-Axis Travels……………………… 28.74″
Y-Axis Travels……………………… 28.74″
Z-Axis Travels……………………… 29.13″
Distance from Spindle Center to Top of Pallet…… 3.15″ – 31.89″
Distance from Spindle Nose to Pallet Center……. 2.76″ – 31.89″
Maximum Table Load………………….. 1543 lbs.
Maximum Workpiece Height…………….. 39.37″
Maximum Workpiece Diameter…………… 31.49″
Spindle Nose……………………….. CAT #40
Spindle Speed Increment……………… 1 RPM
Spindle Horsepower (10/30 Min/Cont)…… 30/20/15 HP
Tool-to-Tool Time…………………… 0.8 seconds
Chip-to-Chip Time (Approx.)………….. 2.7 seconds
Maximum Tool Diameter……………….. 3.74″
Max.Tool Dia.W/Adjacent Pockets Empty…. 5.74″
Maximum Tool Length…………………. 15.75″
Maximum Tool Weight…………………. 26.5 lbs.
Rapid Traverse Rate…………………. 2362 IPM
1-Machine Only Floor Space Required…… 108.2″ x 174.6″ x 118.9”
1-Machine Only Weight……………….. 22,500 lbs.
Machine #1 Specification
• PFH-5800
• 640M Control
• Year of Manufacture 6-2004
• 240-Tool Hive Magazine
• Renishaw Spindle Probe MP-10 W-Inspection Plus
• Automatic Tool Eye (Plunger)
• 15,000 RPM Cat-40
• NCRT-Table (Full-Contouring)
• Mayfran Concept 20002 Rear Discharge Chip Conveyor
• Coolant Through The Spindle
• Niagara Coolant
• Flood Coolant
• 80-Gallon Coolant Sub Tank
Machine #2 Specification
• PFH-5800
• 640M Control
• Year of Manufacture 4-2006
• 330-Tool Hive Magazine
• Renishaw Spindle Probe MP-10 W-Inspection Plus
• Automatic Tool Eye (Plunger)
• 15,000 RPM Cat-40
• NCRT-Table (Full-Contouring)
• Mayfran Concept 20002 Rear Discharge Chip Conveyor
• Coolant Through The Spindle
• Niagara Coolant
• Flood Coolant
• 80-Gallon Coolant Sub Tank
Machine #3 Specification
• PFH-5800
• 640M Control
• Year of Manufacture 3-2007
• 330-Tool Hive Magazine
• Renishaw Spindle Probe OMP-10 W-Inspection Plus
• Automatic Tool Eye (Plunger)
• 15,000 RPM Cat-40
• NC-Positioning Table 360000 Positions (Non-Contouring)
• Mayfran Concept 20002 Rear Discharge Chip Conveyor
• Coolant Through The Spindle
• Niagara Coolant
• Flood Coolant
• 80-Gallon Coolant Sub Tank

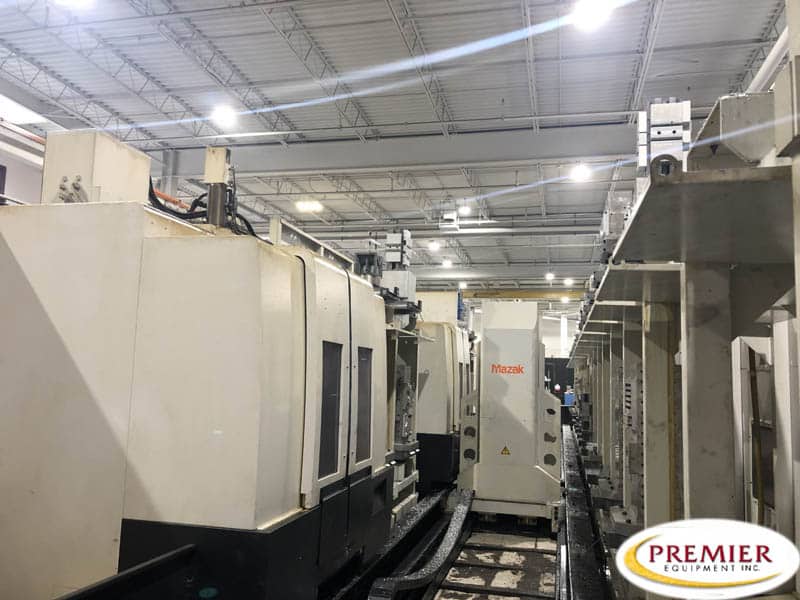

MMC-5800 Palletech Hi-Rise Level
• 44-Station With 2-Load Stations. Palletech is controlled with machine #1 control.
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity
