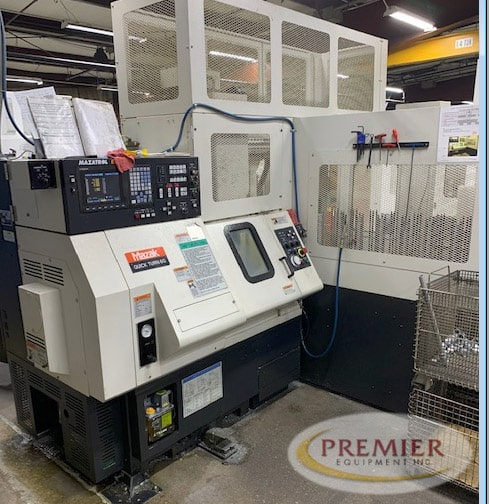

Mazak QT-6G with Gantry (2009)

MAZAK QT6G WITH GANTRY ROBOT for sale – Used Mazak for Sale
Specs
Swing Over Bed 18.5″
Turning Diameter, Shaft Diameter 3.84″
Machining Length 2.4″
Chuck Size 1, 2 Collet
Spindle Nose 1, 2 115MM DIA. FLAT
Spindle Bore Diameter 1, 2 1.73″
Spindle Bar Capacity 1, 2 1.26″
Spindle Speeds 1, 2 7000 RPM
Spindle Horsepower 1, 2 10 HP
X – Axis Travel 1, 2 11.81″
Z – Axis Travel 1, 2 9.45″
Turret Configuration 1, 2 6
Machine Weight 4250 LBS.
Equipped with
1.41″ BAR CAPACITY W/O CHUCK 6″ THROUGH HOLE CHUCK PACKAGE B-206
ADDITIONAL M-CODE ONE SET (2 M-CODES) AIR BLAST THRU SPINDLE
AUTO CHUCK OPEN/CLOSE AUTO POWER OFF
AUTOMATIC PARTS CATCHER BAR FEED INTERFACE
CHUCK AIR BLAST CHUCK AIRBLAST
COOLANT THRU SPINDLE SYSTEM DOUBLE FOOT SWITCH
EXTERNAL MEASUREMENT INTERFACE FIXTURE FOR HAND-JAW MACHINING
GANTRY ROBOT GL6F B-AXIS EXTENTION GANTRY ROBOT SYSTEM FLEX GL6F WITH 20 PALLETS
GL-ROBOT STACK HEIGHT 400MM 20P CONVEYOR HIGH PRESSURE COOLANT
MAZATROL EIA CNC CONTROL OPEN/CLOSE CONFIRMATTION
SCRAPER TYPE CHIP CONVEYOR SIGNAL (3 COLORS LIGHTS)
SPINDLE INDEX 5 DEGREES/ 72 POSITIONS SPINDLE ORIENTATION (UP TO 3 POSITIONS)
TEMPERATURE CONTROLED COOLANT SYSTEM TOOL EYE (MANUAL)
USER MACRO’S WORK STOPPER IN SPINDLE
WORKPIECE CONVEYOR X, AND Z BALL SCREW COOLING SYSTEM
