Mazak QT Nexus 250MS-II – 2010

SKU: Mazak-QT-Nexus-250MS-II-2010 , ,

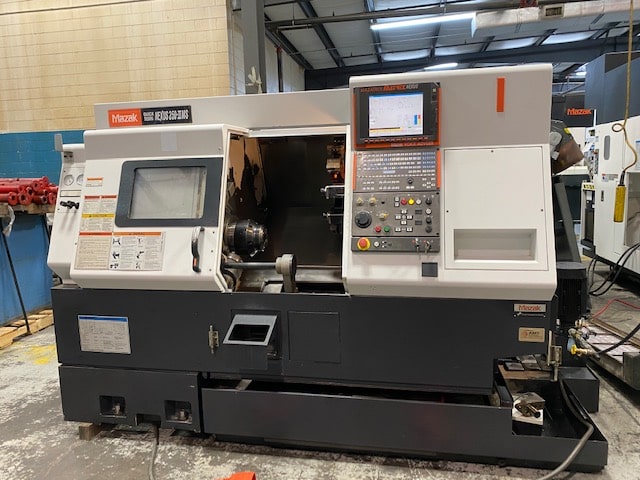

2010 Mazak QT Nexus 250-MS-II
Multi-Axis CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing………………………..26.58″
Standard Machining Diameter……………10.87″
Maximum Machining Diameter…………….14.75″
Maximum Turning Distance………………21.27″
Spindle Motor …………………..35 HP
Standard Bar Capacity ………………3″
Spindle Speed …………………….4,000 RPM
Second Spindle Chuck Size………….. ..6″
Number of Tools………………………12
Equipped With (subject to buyer verification):
Mazatrol Matrix Nexus Control 12.1” Color LCD
USB I/F (2-Port) LAN Port
User Macro (Common Variables: 600 Pairs) EIA/ISO Input Function
Sequence Number Comparison Stop Function Automatic Tool Eye
Chuck Air Blast (Second Spindle) 12 Position BDI Turret
Milling-Spindle Synchronous Tapping C-Axis 0.0001 Degree Incr. (1st Spindle)
Spindle Bore 3.46” Auto Chuck Jaws Open/Close (1&2 Spindle)
Chuck open/Close Confirm (1&2 Spindle) 2nd Spindle C-Axis .0001 Deg. Including EIA Input Function
Relocation Device Windows XP Op System for Mazak Machine
Automatic Parts Catcher (Dia. 3” x 4.7” x 5.5 lbs) Part Exit Conveyor
Chip Conveyor Side Disposal (Hinge Type) LNS Quick Load Servo 80 S2 Barfeed
Collet Chuck on Main Spindle 6” 3-Jaw Hydraulic Chuck for Sub-Spindle
All Available Tooling
