MAZAK QT Nexus 350II / 1550 – 2012

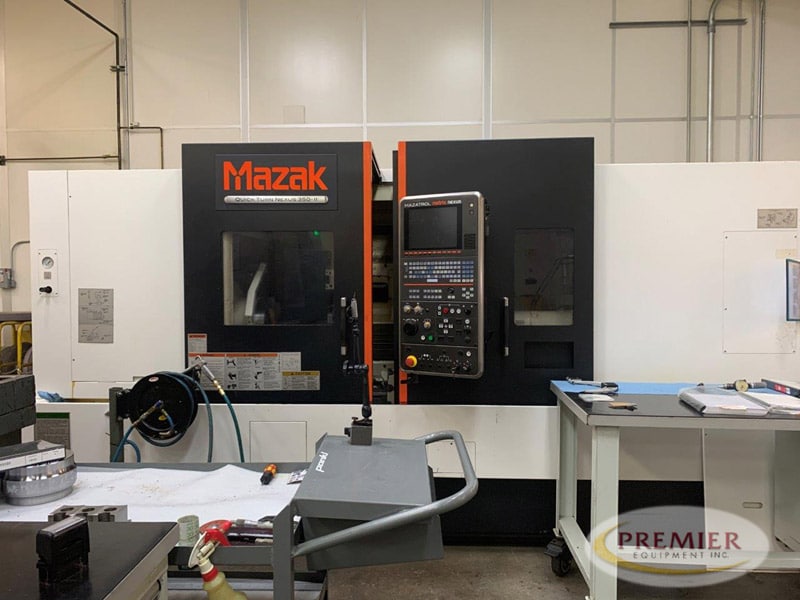

2012 MAZAK NEXUS QTN 350II / 1550 CNC UNIVERSAL TURNING CENTER W/STEADY REST
Specs
Swing Over Bed 26.8″
Turning Diameter, Shaft Diameter 16.5″
Machining Length 62″
Distance Between Centers 63.8″
Chuck Size 1, 2 12″
Spindle Nose 1, 2 A2 – 11
Spindle Bore Diameter 1, 2 4.4″
Spindle Bar Capacity 1, 2 4″0
Spindle Speeds 1, 2 3300 RPM
Spindle Horsepower 1, 2 40 HP
X – Axis Travel 1, 2 10.63″
Z – Axis Travel 1, 2 59.03″
Rapid Traverse Rates X1, X2 787 IPM
Rapid Traverse Rates Z1, Z2 984 IPM
Turret Configuration 1, 2 12
Tailstock Quill Diameter 3.94″
Tailstock Taper MT 5
Tailstock Travel 55.8″
Machine Weight 17,900 LBS
Equipped with
AUTOMATIC TOOL EYE CHIP CONVEYOR
EIA/ISO PROGRAMMING MANUAL STEADY REST
MAZATROL MATRIX CNC CONTROL MT 5 BUILT IN LIVE CENTER
PROGRAMMABLE TAISTOCK SPIRAL
