Mazak QT Nexus 450M-II x 40″cc – 2012

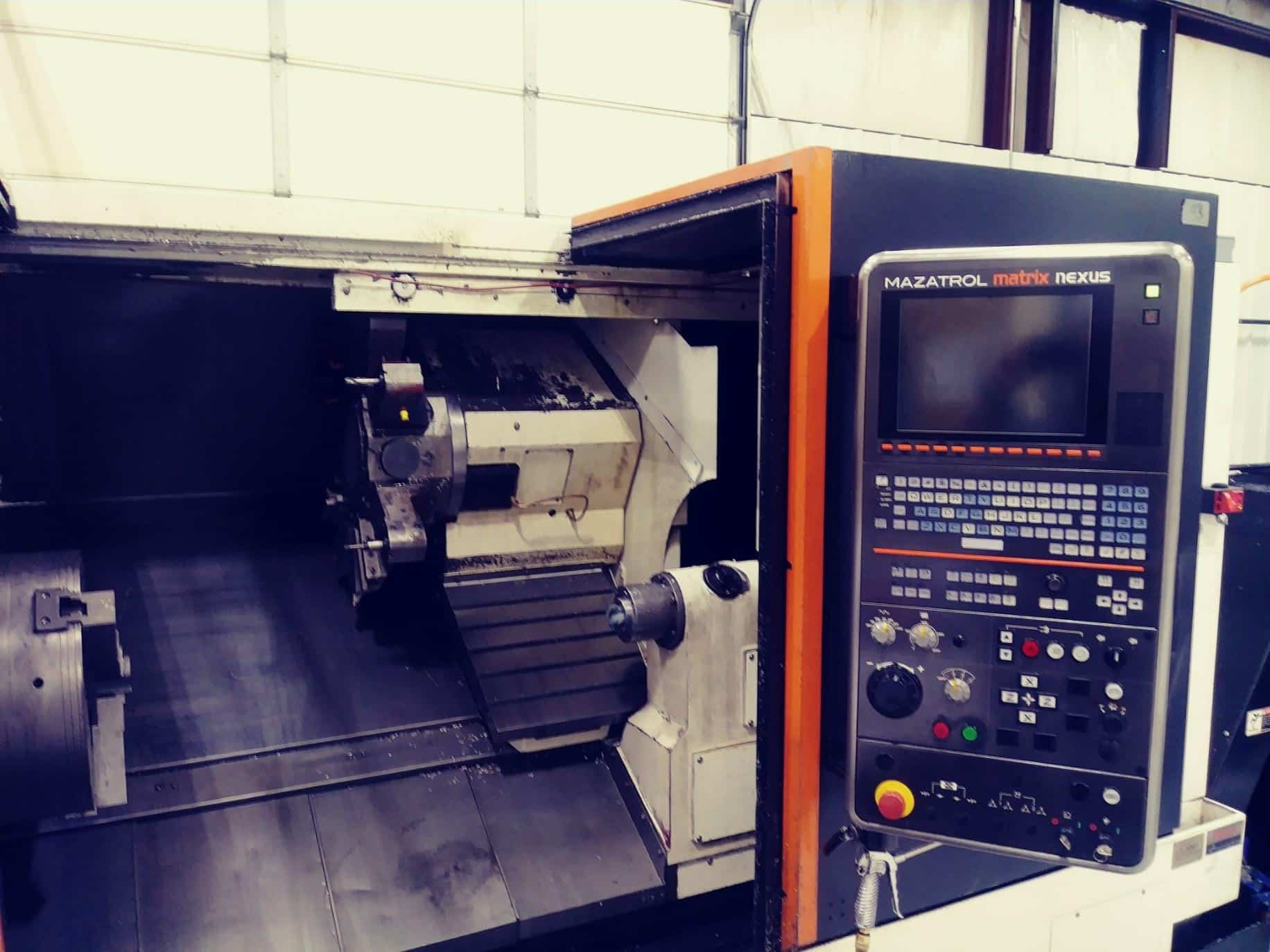

2012 MAZAK QT Nexus 450M-II/1000 CNC TURNING AND MILLING CENTER
Specs
Swing Over Bed 29.5″
Turning Diameter, Shaft Diameter 22.8″
Machining Length 42.6″
Distance Between Centers 44″
Chuck Size 1, 2 18″
Spindle Nose 1, 2 A2 – 15
Spindle Bore Diameter 1, 2 7.23″
Spindle Bar Capacity 1, 2 7.2″
Spindle Speeds 1, 2 2000 RPM
Spindle Horsepower 1, 2 40 HP
Spindle Torque 1217 FT – LBS.
X – Axis Travel 1, 2 13.3″
Z – Axis Travel 1, 2 43.2″
C – Axis Travel 1, 2 .0001 DEGREE
Rapid Traverse Rates X1, X2 1181 IPM
Rapid Traverse Rates Z1, Z2 1299 IPM
Rapid Traverse C Axis 555 RPM
Turret Configuration 1, 2 12
Turret Rotary Tool Spindle Speed 1, 2 4000 RPM
Turret Rotary Tool Horse Power 1, 2 10 HP
Tailstock Quill Diameter 3.94″
Tailstock Taper MT 5
Programmable Tailstock YES
Tailstock Travel 33.4″
Machine Weight 20,417 LBS
Equipped with
ALL AVAILABLE MANUALS ALL AVAILABLE TOOL HOLDERS
AUTOMATIC TOOL EYE CHIP CONVEYOR
COMPARISON STOP CYLINDER
EIA 3D COMP EIA HELICAL TAPPING
EIA PATTERN CYCLE EIA/ISO PROGRAMMING FUNCTION
EXT DATA I/O INVERSE TIME
MAZATROL MATRIX CNC CONVERSATIONAL CONTROL MULTI TAP TRANSFORMER
PITCH ERROR COMPENSION POLAR COORDINATE INPUT
RELOCATION DEVICE ROTATION, GEOMETRIC, SCALING
SCHUNK TB-460-185 PNEUMATIC CHUCK FRONT SPINDLE BORE DIAMETER 7.23”
SPIRAL SYNC TAP ON MILL HEAD G54.1
THREAD TILTED WORKING PLANE
