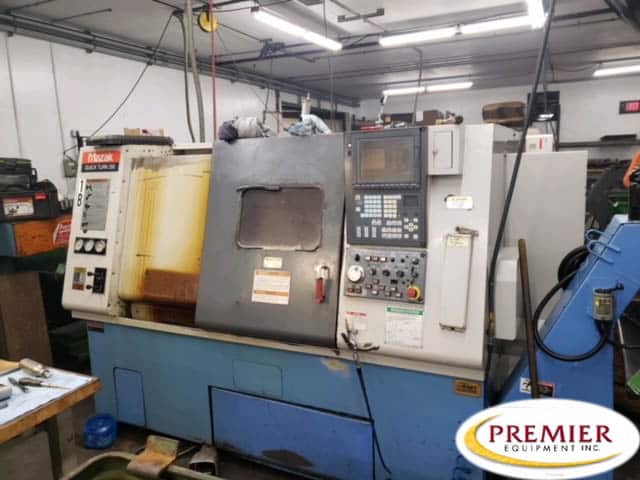

Mazak Quick Turn 250 CNC Lathe / QT250 / QT-250
Specifications (subject to buyer verification):
Maximum Swing 23.6″
Maximum Cutting Diameter 15.7″
Maximum Machining Length 19.7″
X Axis Travel 8.46″
Z Axis Travel 20.1″
Rapid Traverse Rated (X / Z) 1200 IPM / 1300 IPM
Spindle Speed 50 ~ 5000 RPM
Spindle Nose A2 ~ 6″
Hole Thru Spindle / Bar Capacity 2.44″ / 2.0″
Number of Tools 12 Position Turret
Type of Turret Servo / Non-Lift
Tailstock Spindle Center / Spindle Diameter / Travel MT #4 / 3.15” / 5.1”
Tailstock Body Travel 18.1″
Main Motor 20 HP
Machine Dimensions 107″ x 63.8″ x 67”
Machine Weight 9,900 lbs estimated
Equipped With (subject to buyer verification):
Mazatrol Fusion 640T w/Color LCD
Automatic Tool Eye
Programmable Tailstock w/Live Center
Chip Conveyor
8” Chuck
