Mazak QT-35N – 1990

YouTube video

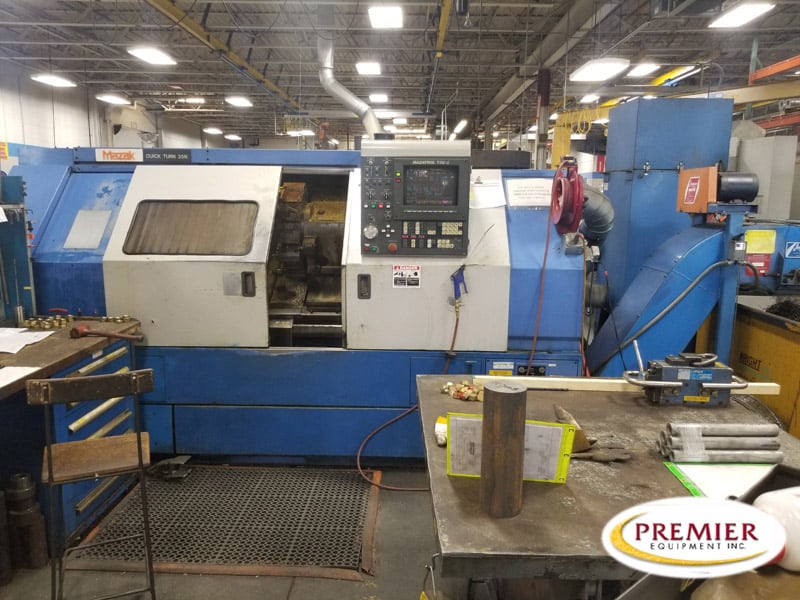

Mazak QT35N CNC Turning Center
Specifications (subject to buyer verification):
Maximum Swing20.08”
Swing Over Bed16.93″
Maximum Cutting Diameter15.75″
Maximum Cutting Length41.02″
X Axis Travel11.02″
Z Axis Travel41.42″
Spindle Speed 30 ~ 3000 RPM
Spindle Nose A2 – 8
Spindle Bore3.15”
Bar Capacity2.75”
Turret Positions12
Rapid TraverseX Axis 472 IPM / Z Axis 708 IPM
Tailstock Quill Diameter3.94” (MT. No. 5)
Tailstock Quill Stoke5.12”
Spindle Horsepower40 HP
Machine Height 74.21”
Required Floor Space80.6” x 141.34”
Machine Weight12,570 lbs.
Equipped With  (subject to buyer verification):
T32-2 Color Control
Chip Conveyor
12” Hydraulic Chuck
Tool Eye
