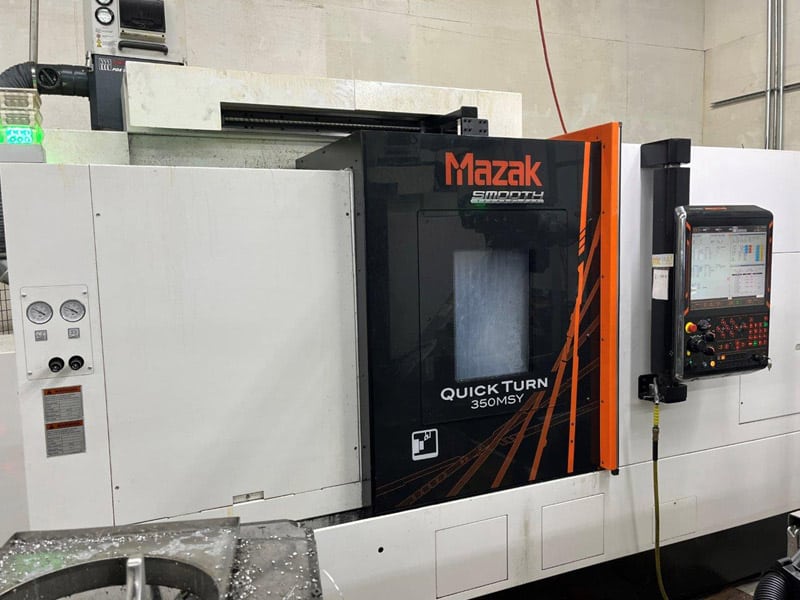

Mazak Quick Turn 350MSY – 2018

Mazak Quick Turn 350MSY CNC Turning Center with Sub-Spindle, Milling and Y-Axis
Specifications:
Capacity
Maximum swing 29.5”
Maximum bar work capacity 4.0”
Maximum machining diameter 16.54”
Maximum machining length 23.8”
Main spindle
Maximum speed rpm 4,000 RPM
Motor output (30-minute rating) 40 HP
Second spindle
Maximum speed rpm 4,000 RPM
Motor rating 30 / 35 HP
Motor output (25% ED) hp 35
Turret (upper)
Number of tools 12
Maximum speed rpm 6,000 RPM
Mill spindle motor output (10-minute rating) hp 10 HP
Feed axes
Travel (X axis) 11.00”
Travel (Y axis) 6” (+/- 3”?)
Travel (Z axis) 26.385”
Travel (W-Axis) 26.63”

Equipped With:
MAZATROL SMOOTH G
Mist Collector
Chip Conveyor
Mazak Superflow V8M/1000 High Pressure Coolant
Milling
Sub Spindle
Y-Axis
Automatic Tool Eye
Engraving Fucntion
Hobbing Function
Re-threading function
Turret air blast
12” Main Spindle Chuck
10” Sub Spindle Chuck
