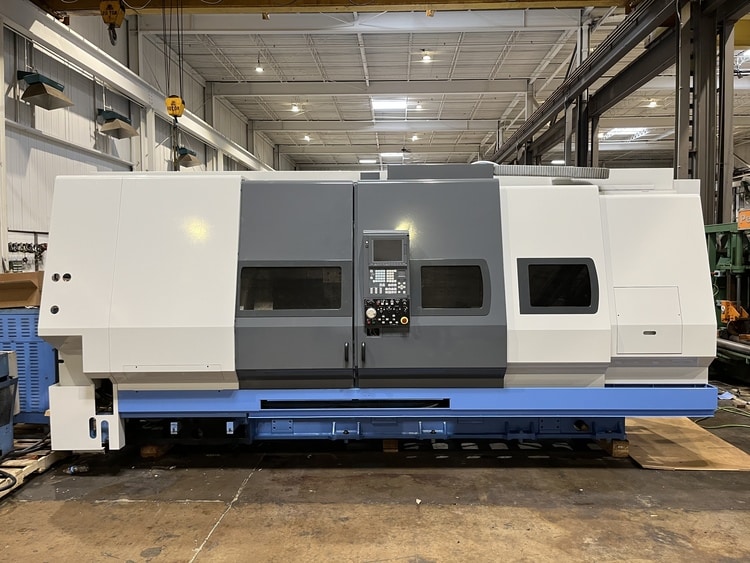

MAZAK SLANT TURN 450/2000
SPECIFICATIONS:
Maximum Swing Diameter……………….. 28.125″
Swing Over Carriage………………….. 20.4″
Maximum Cutting Diameter: Chucking…….. 24.4″
Maximum Cutting Length 80″……………. 80″
Spindle Nose………………………… A2-15
Spindle Bore………………………… 10.2”
Spindle Speed………………………..1,000 RPM
Number of Speed Ranges……………….. 3
Spindle Horsepower (Cont/30 Mins)……… 30 / 40 H.P.(AC)
Spindle Torque………………………..1157 Ft-Lbs
Type of Turret………………………. Dodecagonal Drum
Number of Tools……………………… 12
Tool Size: Turning & Facing………….. 1.25″x1.25″x6″
Boring Bar Max. Dia. ……… 2″
Turret Index Time (Sec)………………. 0.5/1 Pos / 1.0/Full Turn
Travel X-Axis……………………….. 14.375″
Travel Z-Axis 80″……………………. 83.25″
Z-Axis Thrust Force (Cont/150% Duty) 80″……………………. 3380/5355
Rapid Traverse (X Axis)………………. 787 IPM
Z-Axis……………………………… 945 IPM
Tailstock Spindle Center (Universal)…… MT #5
Tailstock Spindle Diameter (Universal)…. 5.12″
Tailstock Spindle Travel (Universal)…… 5.12″
Tailstock Body Travel 80″ U…………… 77.8″
Floor Space: (W x L) 80″ Universal……………. 214.57″ x 80.51″
Machine Height………………………. 99.21″
EQUIPPED WITH:
Mazatrol PC Fusion 640T
Chip Conveyor
Coolant
4 Jaw Manual Chuck with 10” Bore
10.2” Bore
Transformer
Prepped For Rear Chuck
