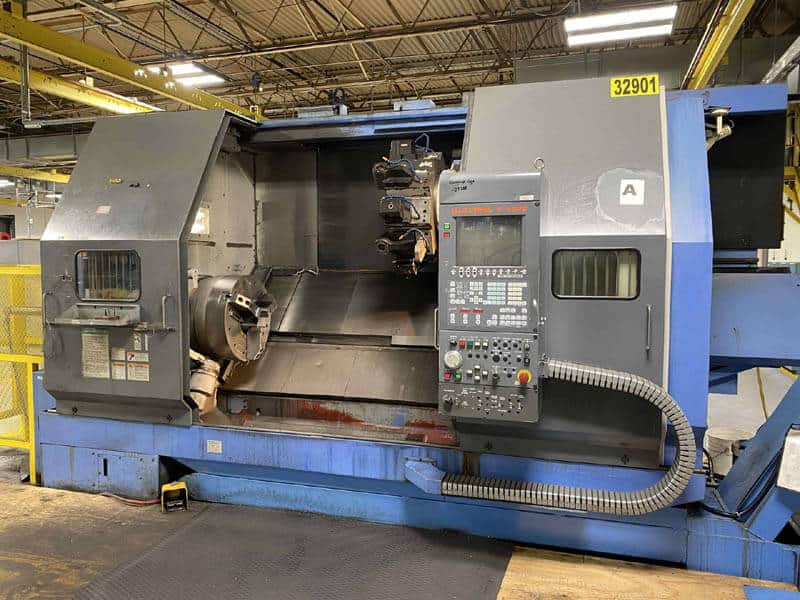

Mazak Slant Turn 50N Chucker – 1998

Mazak Slant Turn 50N for sale
CNC Chucker
Specifications (subject to buyer verification):
Maximum Swing……………………….. 31.7″
Swing Over Carriage………………….. 22″
Maximum Cutting Diameter: Chucking……. 26″
Spindle Nose………………………… A1-11
Spindle Bore………………………… 6.5″
Spindle Speed……………………….. 4 – 1,600 RPM
Number of Speed Ranges……………….. 3
Spindle Horsepower (Cont/30 Mins)……… 40/50 H.P.
Type of Turret………………………. Decagonal Drum
Number of Tools……………………… 15
Tool Size: Turning & Facing………….. 1.25″x1.25″x6″/7″
Boring Bar Max. Dia. ……… 2.5″
Turret Index Time (Sec)………………. 1.3/1 pos 4.2/full turn
Travel X-Axis……………………….. 22.6″
Travel Z-Axis:
80″ Chucker ………………….. 82″
Z-Axis Thrust Force (3 min/30% Duty)…… 9,260 lbs.
Rapid Traverse: X-Axis………………. 475 IPM
Z-Axis…….(551 IPM for 120″)…… 640 IPM

Floor Space:
80″ Chucker………………….. 142″ x 298″
Machine Height………………………. 107″
Total Power Required (Machine Only)……. 78 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will Be Greater.
Total Weight:
80″ Chucker………………….. 30,860 lbs.

Equipped With (subject to buyer verification):
Mazatrol T-Plus
18” Chuck
6.5” Bore
No Tailstock
