MAZAK SLANT TURN NEXUS 500/2000 – 2015

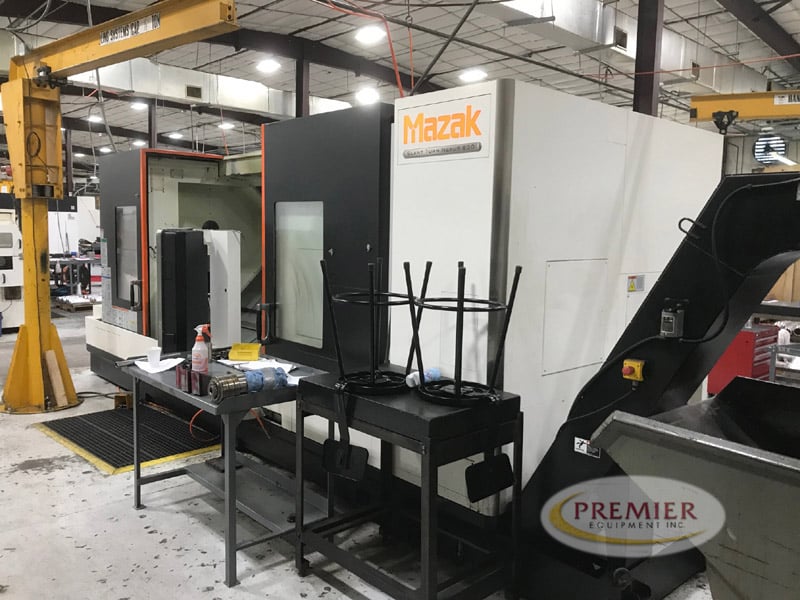

2015 MAZAK SLANT TURN NEXUS 500/2000 CNC UNIVERSAL TURNING CENTER
Specs
Swing Over Bed 40.9″
Turning Diameter, Shaft Diameter 36″
Machining Length 86.38″
Distance Between Centers 88″
Chuck Size 1, 2 18″
Spindle Nose 1, 2 A2 – 15
Spindle Bore Diameter 1, 2 7.2″
Spindle Bar Capacity 1, 2 7.2″
Spindle Speeds 1, 2 1600 RPM
Gear Ranges 2
Spindle Horsepower 1, 2 60 HP
Spindle Torque 5163 FT. – LBS.
X – Axis Travel 1, 2 18.25″
Z – Axis Travel 1, 2 89.8″
Rapid Traverse Rates X1, X2 787 IPM
Rapid Traverse Rates Z1, Z2 945 IPM
Turret Configuration 1, 2 24
Tailstock Taper MT 5
Programmable Tailstock YES
Tailstock Travel 86.75″
Machine Weight 41,667 LBS.
Equipped with
18″ SCHUNK 500-230 AIR CHUCK SYSTEM ABSOLUTE POSITIONING
ALL AVAILABLE MANUALS AUTO TOOL LENGTH MEASUREMENT
CHIP CONVEYOR CHUCK OPEN CLOSE
COMPARISON STOP EIA HELICAL TAP CYCLE
EIA PATTERN CYCLE EIA/ISO PROGRAMMING / 12.1” COLOR MONITOR
EXT-DATA I/O FOOT PEDAL FOR HYDRAULIC OR AIR CHUCK
GEOMETRIC HIGH PRESSURE COOLANT
HYD. PRESSURE INTERLOCK INVERSE TIME
MATRIX 2 CNC CONTROL M-T CONNECT
NETWORK INTERFACE PITCH ERROR COMP.
POLAR COORDIANTE INPUT PROGRAMMABLE TAILSTOCK WITH BUILT IN MT #6
RE-THREAD ROTATION
SCALING SPIRAL
THREAD CUT SPEED OVERRIDE THREAD CUTTING FUNCTION
THREAD START POINT COMP. TILTED WORKING PLANE
VARIABLE 600 SETS
