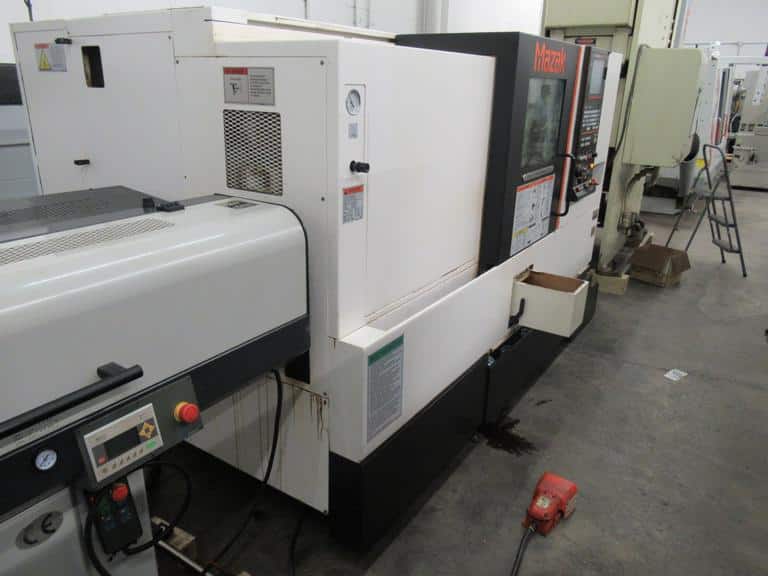

Mazak Quick Turn Smart 200 2-Axis CNC Turning Center (QTS200, QTS-200)
Specification:
Control Mazak Mazatrol Smart CNC Control
Max Swing Over Bed 26″
Max Turning Diameter 14″
Max Turning Length 21.035″
Spindle Speeds 5000 Max RPM
Spindle Drive 20 HP
Turret Capacity 12 Stations
Turret Travels (X,Z) 7.76″ / 22″
Tailstock? Programmable Tailstock
Max Bar Capacity 2.6″
Equipped With:
Mazak Mazatrol Smart CNC Conversational Control, EIA/ISO Input Function, LNS ECO Load-LS2
Magazine Barfeeder, Kitagawa B-208 8″ 3-Jaw Chuck, Tool Presetter, Parts Catcher, Programmable
Tailstock with Live Center, 12-Station Turret, Coolant System and Tank, Chip Conveyor, Bolt-On Tool
Holders and Wedge Clamps.
