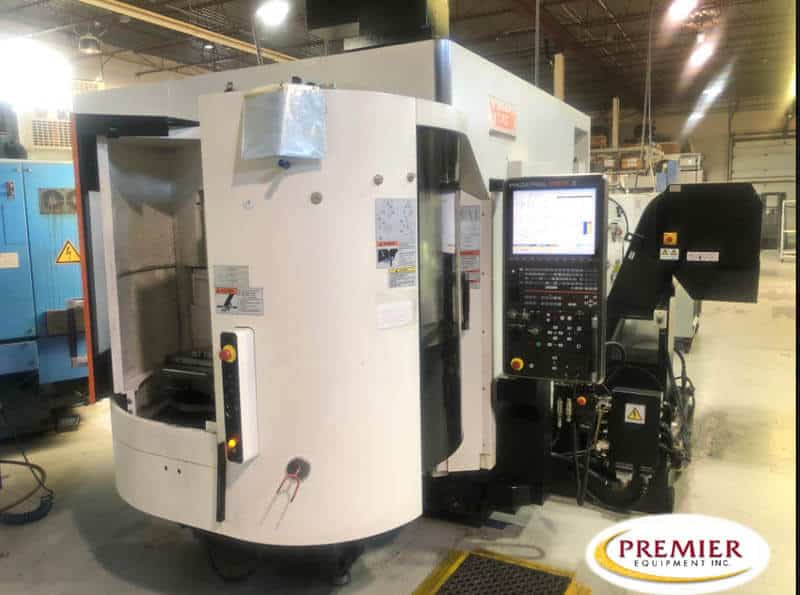

MAZAK VARIAXIS J500/5X VERTICAL 5-AXIS CNC MACHINING CENTER
Specifications:
X 13.78″
Y 21.65″
Z 20.08″
A -120° ~ +30°
C 360°
POWER 15 hp
RPM 18,000 RPM
# ATC 18
TAPER CAT-40
TABLE-W 15.74″
TABLE-L 19.68″
# AXIS 5
MAX TABLE LOAD 440 lb
RAPID TRAVERSE (X/Y/Z) 1181 in/min.
RAPID TRAVERSE (A/B/C) 30 RPM
CONTROL CNC (MAZATROL SmoothX)
DIMENSIONS 127″ X 102″ X 112″
WEIGHT 15,432 lb
Equipped With:
18,000 rpm spindle option
Through spindle coolant (SuperFlow 71 psi)
2 pallet changer w/ work cleaning function
Chip conveyor
Spindle chiller unit
Coolers for ball screws (x,y,z)
Work measuring system (RMP600)
19″ color LCD touchscreen
Work setting error compensation
Smooth synchronized tapping
Tool radius compensation
USB/LAN port
