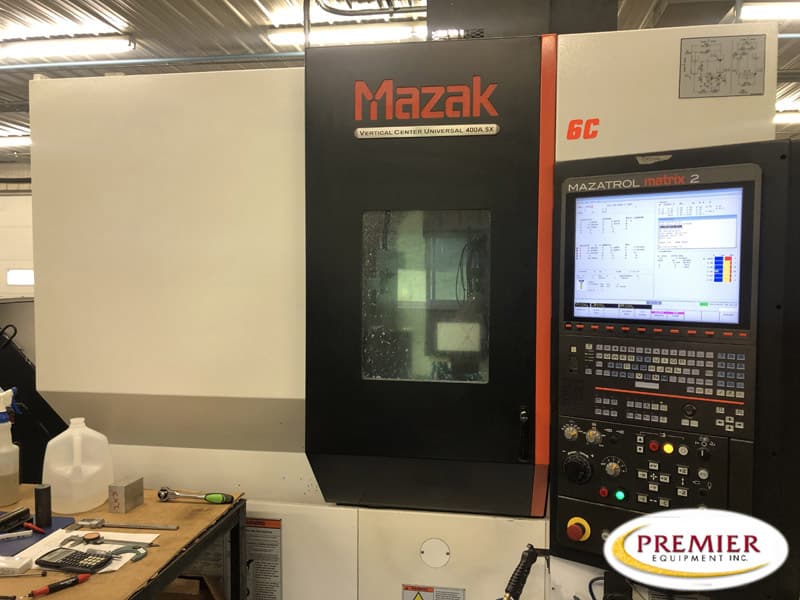

Mazak VCU400A-5X 5-Axis CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size…………………………………………………………… 15.75” diameter
X-Axis Travel……………………………………………………… 19.88”
Y-Axis Travel……………………………………………………… 15.75”
Z-Axis Travel……………………………………………………… 20.07”
B-Axis Travel (table tilting: indexing 0.0001°)……… + 95° ~ -45°
C-Axis Travel (table rotation: indexing 0.0001°)…. +/- 360°
Maximum Table Weight Capacity……………………… 441 LBS
Optional Spindle Speed / Motor (30min.)…………… 12,000 RPM / 15 HP
Number of Tools………………………………………………… 30
Tool Shank Type………………………………………………… CAT #40
Equipped With (subject to buyer verification):
Mazatrol Matrix 2 Control
EIA/ISO Code Input Function
Data I/O Function Only
Tilted Working Plane
Polar Coordinate Input (EIA)
Relocation Device
Simultaneous 5 Axis
5-Axis Tool Comp.
12,000 RPM Cat-40 Spindle
30-Tool Magazine
Hinge Chip Conveyor Side Discharge
113 Coolant Through The Spindle
Rigid Tapping
F) Tool Tip Control 5-Axis
F) Tool Radius Control 5-Axis
Mazacc-2D Software G-61.1 Shape Comp
G00 Slope Constant
