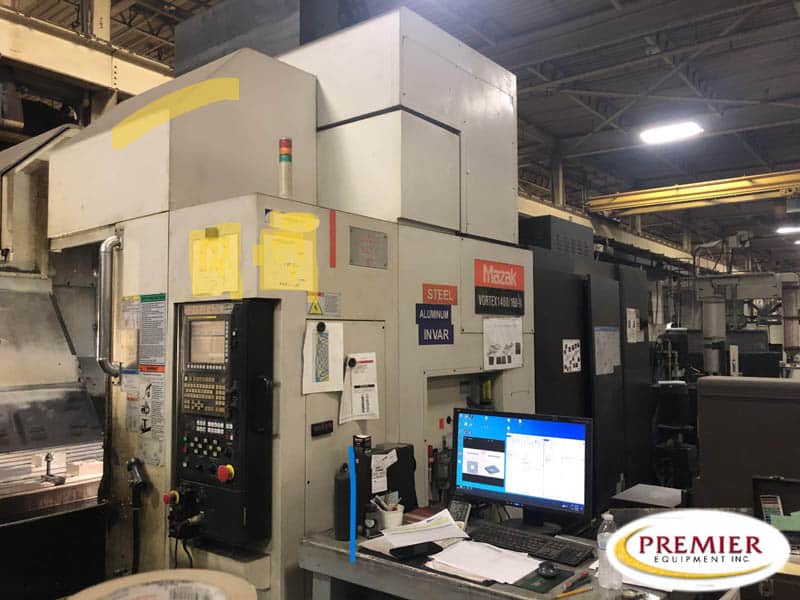

Mazak Vortex 1400/160-II 5-Axis CNC Double Column VMC
Specifications (subject to buyer verification):
Pallet Size……………………………… 49.2″ x 157.4″
Floor Space Required……………………… 191.0″ x 436.2″
Machine Height from Bottom Base……………. 154.7″
Total Power Required (Machine Only)………… 59.4 KVA
Machine Weight…………………………… 66,150 lbs.
TRAVELS
X Axis Travels 157.48″
Y Axis Travels 55.12″
Z Axis Travels 23″
Distance from Spindle Nose to
Table Top 7.9″ – 30.91″
Distance Between Columns………………….. 58.27″
WORKPIECE SIZE
Maximum Table Load Capacity…………….. 11,000 lbs.
Maximum Workpiece Size (L/W/H) ………. 157.48/58.27/25.2″
SPINDLE
Spindle Nose HSK-100
Spindle RPM 15,000 RPM
AUTOMATIC TOOL CHANGER
Magazine Capacity 60
EQUIPPED WITH (subject to buyer verification):
Fanuc Series CNC Control
HSK-100 Taper
15,000 RPM
60 ATC
