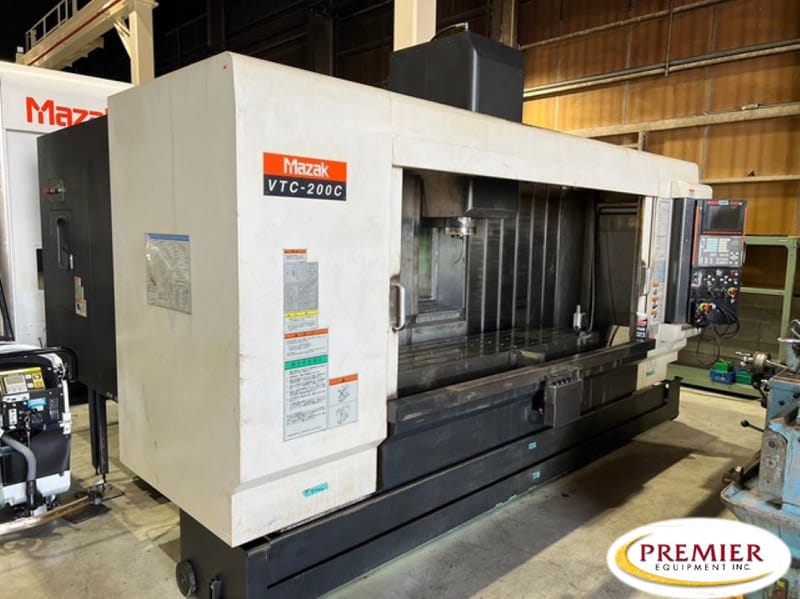

Mazak VTC200C CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size……………………………………………………………. 78.74” x 20.08”
Table Load Capacity……………………………………………… 2,200 Lbs.
Spindle Nose……………………………………………………….. #40
Spindle Speed……………………………………………………… 10,000 RPM
Spindle Horsepower (5min/10min/30min)………….. 25/20/15 HP
Distance from spindle to table top…………….……….. 7.09” min, 27.17” max
Distance from spindle C/L to column…………….……. 21.65”
Table Height……………………………………………………….. 29.53”
X-Axis Travel……………………………………….………………. 65.35”
Y-Axis & Z-Axis Travel………………………………….………. 20.08”
Servo Magazine Capacity…………………………………….. 24 Tools
Equipped With (subject to buyer verification):
Mazatrol Fusion 640M Control
10,000 RPM
TSC
