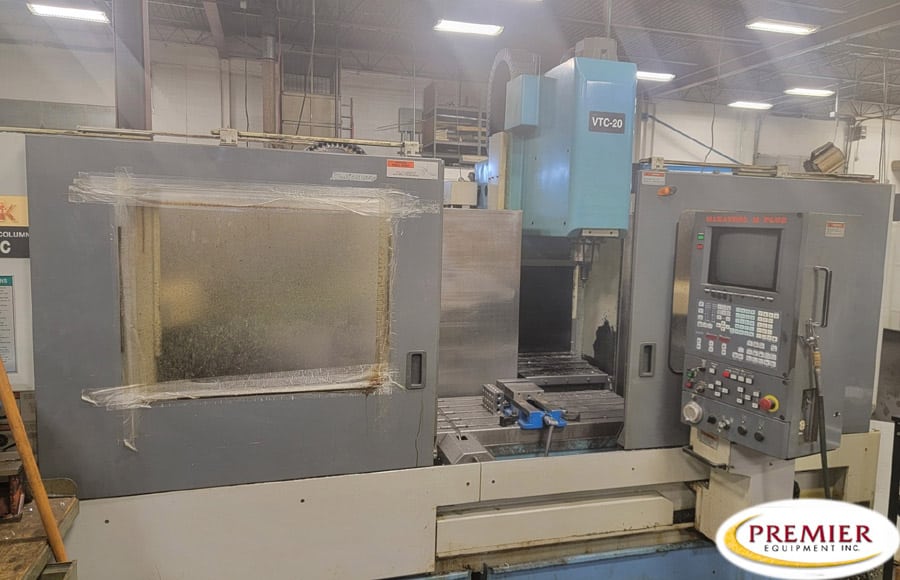

Mazak VTC-20C – 1997

Mazak VTC20C for sale
CNC Vertical Machining Center
Specifications (subject to buyer verification):
Table Size 78.74″ x 20.10″
Table Load Capacity 2160 lbs
X Axis Travel 65.35″
Y Axis Travel 20.08″
Z Axis Travel 20.08″
Distance Spindle Nose to Table Top 7.09” – 27.16”
Magazine Capacity 2 x 24 Position Changers
Rapid Traverse Rates X,Y / Z 787 IPM / 590 IPM
Spindle Nose CAT 40
Spindle Speed 7,000 RPM
Max. Tool Length / Weight 13.8” / 17.6 lbs.
Main Motor 15 HP

Equipped With (subject to buyer verification):
Mazatrol M-Plus CNC Control Dual 24 Position Tool Changers
Adaptive Feedrate Control RS-232 Port
Helical Interpolation Background Tool Path Check
Tool Life Management Tool Breakage Recovery
Helical Spiral Interpolation Spindle Cooler
Complete Coolant System Chip & Coolant Guards
Auto Tool Length Measurement (L&R) Synchronized/Rigid Tapping
EIA/ISO Input Function
