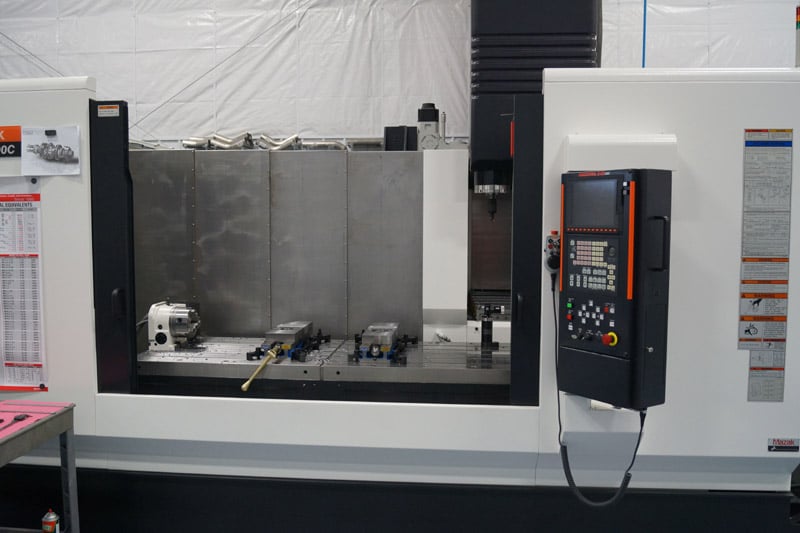

Mazak VTC300C CNC Mill
Specifications
Table Size 78.74″ x 30″
Max Table Load Capacity 3300 Lbs.
X Axis Travel 65.35″
Y Axis Travel 30″
Z Axis Travel 26″
Main Spindle RPM 12,000 RPM
Rapid Traverse Rate X 1574 IPM
Rapid Traverse Rate Y 1574 IPM
Rapid Traverse Rate Z 1574 IPM
Number of Tool Stations 24 ATC
Maximum Tool Diameter 2.75″
Max Tool Dia Adjacent Pocket Empty 4.33″
Maximum Tool Length 13.78″
Maximum Tool Weight 17.6 Lbs.
Spindle Taper CAT40
Main Spindle HP 20 / 30 HP
Equipped With:
Mazatrol Fusion 640MN Control
Renishaw Probe
Chip Conveyor
Mazak MR-160 RAM01 NC Rotary Table
Renishaw ATLM
Coolant Thru Spindle (213PSI)
Renishaw EIA Inspection Plus
PCMCIA Card Network Connection
Manual Pulse Generator
