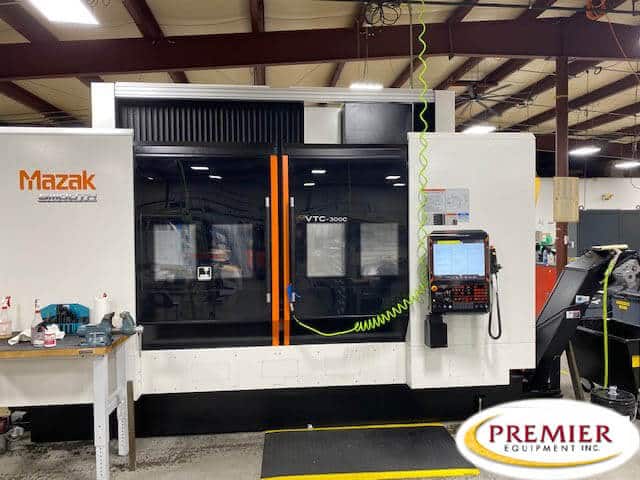

Mazak VTC-300C with Rotary Table – 2019

MAZAK VTC-300C CNC 4 AXIS VERTICAL MACHINING CENTER
Specs
Number Of Tables / Pallets 1
Table Size 78.74″ X 30.01
Weight On Table 3,300 LBS
Spindle Nose To Table 4.3″ ~ 30.3″
X – Axis Travel 65.35″
Y – Axis Travel 30″
Z – Axis Travel 26″
Spindle Speed 15,000 RPM
Spindle Taper 40 CT
Main Motor 25 HP
Automatic Tool Changer 24 ATC
Tool Diameter 3.14″, 4.3″
Tool Length 13.78″
Tool Weight 17.6 LBS
Machine Weight 26,000 LBS
Equipped with
15,000 RPM SPINDLE 2ND AUX. FUNCTION
461 HOURS ON MACHINE 8 MB MEMORY
AUTO ATLM CHICK WORK HOLDING CUSTOM DRILLED & TAPPED SUB TABLES
COMPARISON STOP DUAL PROBING KIT RMP600/RTS AA W INSPECTION SOFTWARE
EIA HELICAL TAP EIA PATTERN CYCLE
EIA, HIGH SMOOTHING CONTROL, EIA 3D COMP, ROTATION, GEOMETRIC ETHERNET
HAND HELP MPG HIGH PRESSURE THROUGH SPINDLE COOLANT 213 PSI
HIGH SPEED JORGENSON ECO FILTER HINGE CHIP CONVEYOR
KAESER SK15 SCREW TYPE AIR COMPRESSOR WITH TANK AND DRYER MANUAL PULSE GENERATOR
MAZATROL SMOOTH G CONTROL NIKKEN CNC 260 4TH AXIS ROTARY TABLE
PITCH ERROR COMP POLAR COORDINATE INPUT
PROGRAM MEMORY EXPANSION ROT-AXIS SHAP COMP.
SCALING, EXT-DATA I/O SHAPE COMP, THREAD, INVERSE TIME
SMOOTH ENGRAVING FUNCTION SMOOTH SET AND INSPECT
TILTED WORKING PLANE VARIABLE 600 SETS
WORKPIECE AIR BLOW
